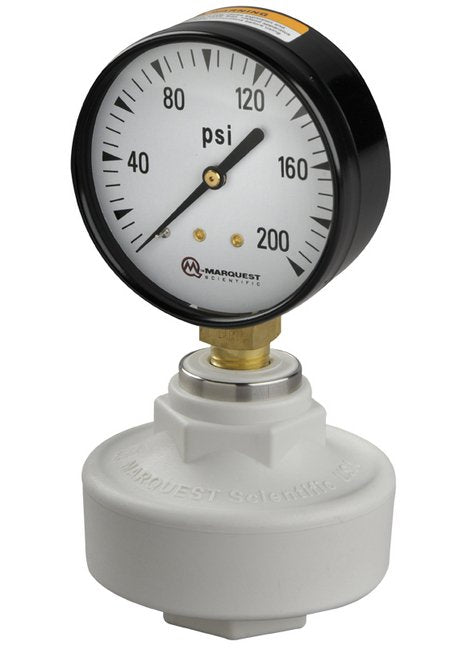

Polypro Gauge Isolator with 2.5" Economy Gauge
Polypro Gauge Isolator with 2.5" Economy Gauge
SKU:GAU-9cb883
Protect & isolate instruments with precision using our Polypro Gauge Isolator & Economy Gauge combo. Ensure accurate pressure transmission & low maintenance.
Regular price
$146.95
Regular price
Sale price
$146.95
Unit price
per
Initiate Order
Polypro Gauge Isolator with 2.5" Economy Gauge
$146.95
Quantity: 1
Claim Your Seller Account
Polypro Gauge Isolator with 2.5" Economy Gauge
$146.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance pressure sensing accuracy with our Polypro Gauge Isolator featuring an EPDM Diaphragm and a 0-200 PSI Economy Gauge. Protect and isolate instruments effectively with an impermeable diaphragm, reinforced connections, and self-venting design. Our isolator ensures precise pressure transmission, low maintenance, and a three-year warranty for reliability. The compact design eliminates dead volume, making installation simple while offering total system media isolation.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-200 PSI, Brass, Blk Pntd Steel
Specifications List Price
146.95 USD
Specifications Materials
PP, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
