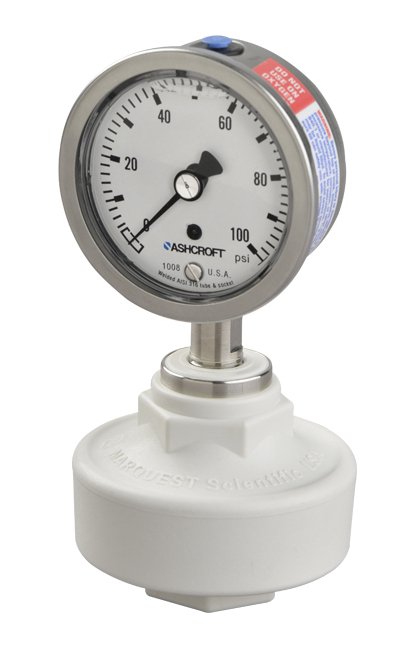

Polypro Gauge Isolator with All Stainless 2.5" Ashcroft Gauge
Polypro Gauge Isolator with All Stainless 2.5" Ashcroft Gauge
SKU:GAU-d265bd
Reliable Polypro Gauge Isolator with Viton diaphragm & reinforced connection for precise pressure protection.
Regular price
$302.95
Regular price
Sale price
$302.95
Unit price
per
Initiate Order
Polypro Gauge Isolator with All Stainless 2.5" Ashcroft Gauge
$302.95
Quantity: 1
Claim Your Seller Account
Polypro Gauge Isolator with All Stainless 2.5" Ashcroft Gauge
$302.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Polypro Gauge Isolator features a Viton diaphragm and a 1/4" Inlet Female NPT Connection designed to protect and isolate pressure sensing instruments effectively. With impermeable Viton material and convoluted diaphragm for accurate pressure transmission, this isolator offers robust performance and low maintenance. The reinforced stainless steel instrument connection ensures durability while the self-venting internal shape allows for easy filling. Ideal for institutional buyers looking for reliable pressure isolation with a 3-year limited warranty included.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-160 PSI, All Stainless
Specifications List Price
302.95 USD
Specifications Materials
PP, Viton Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
