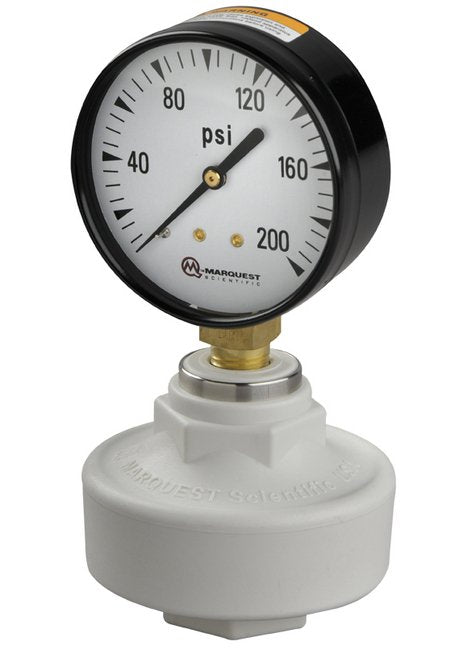

Polypro Gauge Isolator with Economy 2.5" Gauge
Polypro Gauge Isolator with Economy 2.5" Gauge
SKU:GAU-2af82b
Protect pressure instruments with Polypro Gauge Isolator - PTFE diaphragm, Economy 2.5" Gauge, total isolation, low maintenance.
Regular price
$142.95
Regular price
Sale price
$142.95
Unit price
per
Initiate Order
Polypro Gauge Isolator with Economy 2.5" Gauge
$142.95
Quantity: 1
Claim Your Seller Account
Polypro Gauge Isolator with Economy 2.5" Gauge
$142.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ensure precise pressure readings with our Polypro Gauge Isolator featuring a PTFE diaphragm and a 0-160 PSI Economy Gauge. Designed for institutional use, it boasts a low profile design, total isolation from system media, and optimal pressure containment. Compliant with federal procurement standards and industry-specific certifications.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-160 PSI, Brass, Blk Pntd Steel
Specifications List Price
142.95 USD
Specifications Materials
PP, PTFE Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
