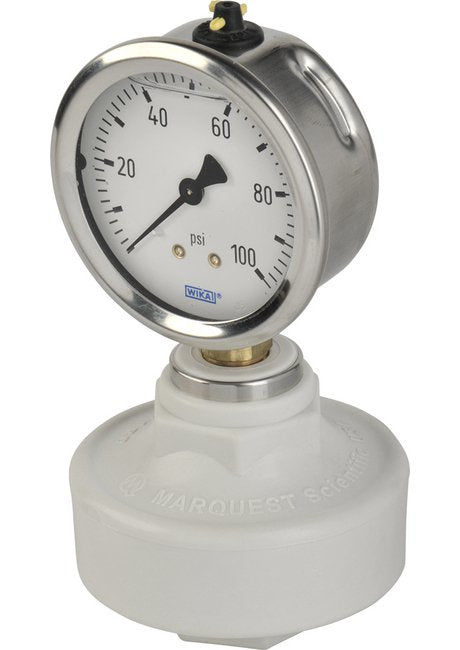

Polypro Gauge Isolator with Wika Stainless Brass 2.5" Gauge
Polypro Gauge Isolator with Wika Stainless Brass 2.5" Gauge
SKU:GAU-ab4ba2
Protect & isolate instruments with precision using Polypro Gauge Isolator & Wika Stainless Brass 2.5" Gauge.
Regular price
$235.95
Regular price
Sale price
$235.95
Unit price
per
Initiate Order
Polypro Gauge Isolator with Wika Stainless Brass 2.5" Gauge
$235.95
Quantity: 1
Claim Your Seller Account
Polypro Gauge Isolator with Wika Stainless Brass 2.5" Gauge
$235.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Polypro Gauge Isolator with Wika Stainless Brass 2.5" Gauge is designed to protect and isolate pressure sensing instruments effectively. Featuring a Viton diaphragm for impermeability and accurate pressure transmission, this isolator ensures total isolation from system media. With a low profile design that eliminates dead volume and a convoluted diaphragm for precise pressure transmission, this isolator offers optimal pressure containment. It meets industry standards for material purity and chemical resistance, making it a reliable choice for industrial applications.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-200 PSI, SS, Brass
Specifications List Price
235.95 USD
Specifications Materials
PP, Viton Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
