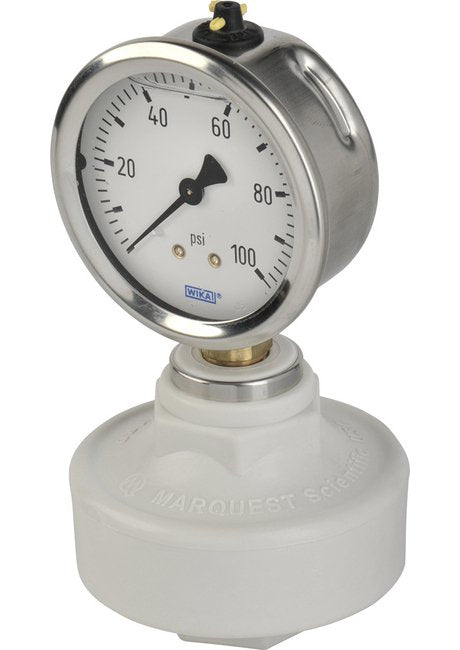

Polypro Gauge Isolator with Wika Stainless Brass 2.5" PSI Gauge
Polypro Gauge Isolator with Wika Stainless Brass 2.5" PSI Gauge
SKU:GAU-43dd3f
Ultimate protection & isolation for pressure sensing. Accurate, durable, and ANSI-standard. 3-yr warranty.
Regular price
$235.95
Regular price
Sale price
$235.95
Unit price
per
Initiate Order
Polypro Gauge Isolator with Wika Stainless Brass 2.5" PSI Gauge
$235.95
Quantity: 1
Claim Your Seller Account
Polypro Gauge Isolator with Wika Stainless Brass 2.5" PSI Gauge
$235.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Polypro Gauge Isolator with Wika Stainless Brass 2.5" PSI Gauge offers ultimate protection and isolation for pressure sensing instruments. Featuring an impermeable EPDM diaphragm for accurate pressure transmission and a low-profile design that eliminates dead volume, this isolator ensures optimal pressure containment. With a reinforced instrument connection and integral wrench provisions for easy field service, this product meets ANSI standards and comes with a 3-year limited warranty.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-160 PSI, SS, Brass
Specifications List Price
235.95 USD
Specifications Materials
PP, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
