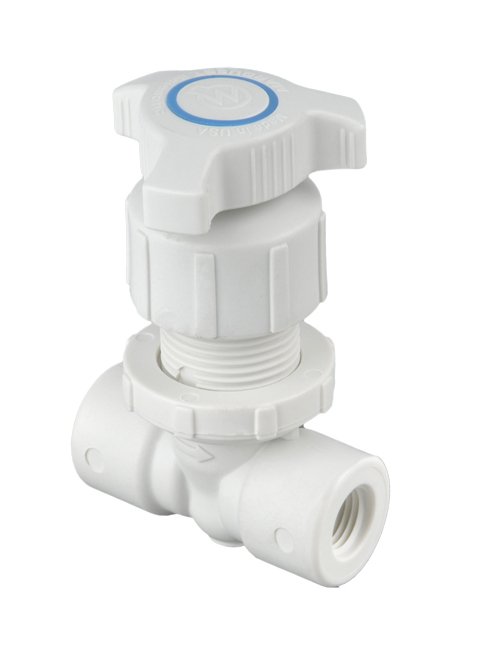

Polypro Globe Needle Valve-PP w/ L Series Needle, 1/4" Female NPT

Name: Polypro Globe Needle Valve-PP w/ L Series Needle, 1/4" Female NPT
Brand: Marquest Scientific, Inc.
SKU: PLA-c6225b
Price: 90.95 USD
Availability: OutOfStock

SKU:PLA-c6225b

Experience unmatched performance with our Polypro Globe Needle Valve-PP w/ L Series Needle, ideal for precise metering control and chemical resistance.

$90.95

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

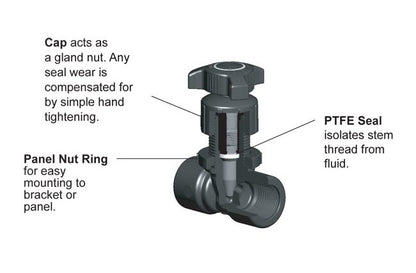

The Polypro Globe Needle Valve-PP w/ L Series Needle offers exceptional performance for on/off cycles with an unlimited life warranty. Featuring a PTFE sealed design and 20% finer metering control, this valve ensures bubble-tight shut-off with low torque operation. With chemical resistance and high purity construction, it is ideal for a variety of applications. Integrally designed for panel mounting without fasteners, this valve is corrosion-resistant and contamination-free, meeting NSF Std 14 & 61 ratings for PVC, CPVC, and PVDF materials.

Product Specifications

Features 0

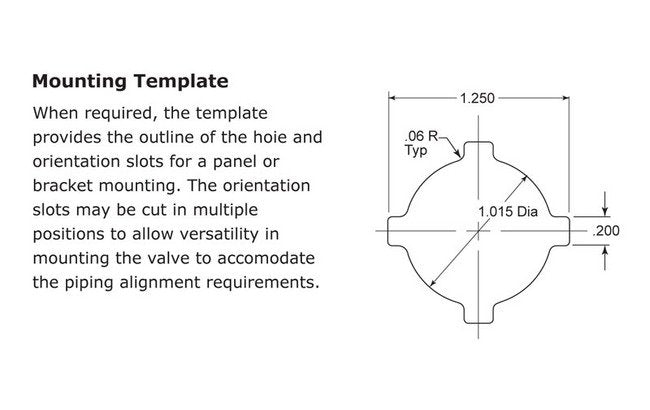

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

Materials Of Construction Materials Of Construction

Body PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene, unpigmented homopolymer, glass & mineral reinforced Seal Virgin PTFE, Choice of three sizes 1/4" x 1/4" FNPT 3/8" x 3/8" FNPT 1/2" x 1/2" FNPT

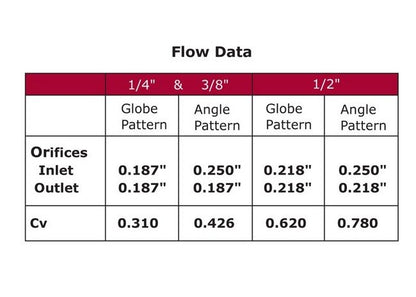

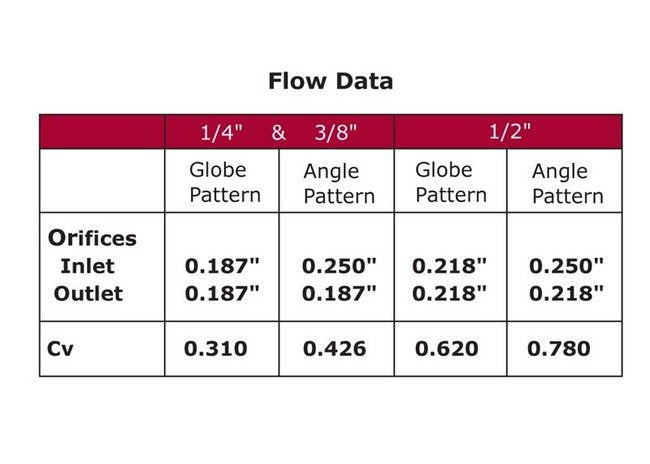

Specifications Cv Factor

0.310

Specifications Inlet X Outlet

1/4" Female NPT

Specifications List Price

90.95 USD

Specifications Materials

Polypro

Specifications Seal

PTFE

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.

Specifications Style

Globe Pattern, L Series Needle

Polypro Globe Needle Valve-PP w/ L Series Needle, 1/4" Female NPT
