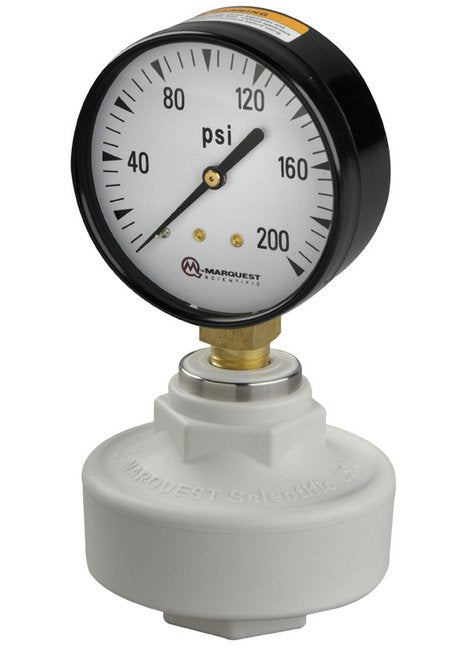

Polypro Tuff Guard Gauge Isolator with 2.5" Economy Gauge
Polypro Tuff Guard Gauge Isolator with 2.5" Economy Gauge
SKU:GAU-708604
Enhance accuracy and protect pressure instruments with the Polypro Tuff Guard Gauge Isolator.
Regular price
$146.95
Regular price
Sale price
$146.95
Unit price
per
Initiate Order
Polypro Tuff Guard Gauge Isolator with 2.5" Economy Gauge
$146.95
Quantity: 1
Claim Your Seller Account
Polypro Tuff Guard Gauge Isolator with 2.5" Economy Gauge
$146.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance pressure sensing accuracy with the Polypro Tuff Guard Gauge Isolator featuring a Viton diaphragm and 1/4" Female NPT Inlet Connection. This isolator boasts impermeable membranes for precise pressure transmission, a reinforced stainless steel connection, and ANSI Schedule 120 compliant wall thickness. Its low profile design eliminates dead volume, ensuring optimum pressure containment. Easy to install and maintain, this isolator is an affordable solution for protecting pressure sensing instruments in various settings.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-200 PSI, Brass, Blk Pntd Steel
Specifications List Price
146.95 USD
Specifications Materials
PP, Viton Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
