Polypro TUFF Guard Gauge Isolator with Economy 2.5" Gauge
Polypro TUFF Guard Gauge Isolator with Economy 2.5" Gauge
SKU:GAU-a96e36
Protect pressure instruments effectively with the Polypro TUFF Guard Gauge Isolator, featuring EPDM diaphragm and precise pressure transmission.
Regular price
$146.95
Regular price
Sale price
$146.95
Unit price
per
Initiate Order
Polypro TUFF Guard Gauge Isolator with Economy 2.5" Gauge
$146.95
Quantity: 1
Claim Your Seller Account
Polypro TUFF Guard Gauge Isolator with Economy 2.5" Gauge
$146.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

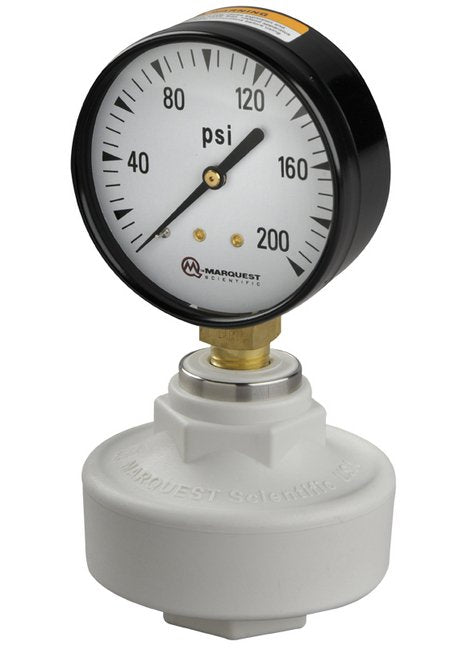

The Polypro TUFF Guard Gauge Isolator with Economy 2.5" Gauge is engineered to safeguard pressure sensing instruments with precision and durability. Featuring an impermeable EPDM diaphragm and a 1/2" Female NPT Inlet Connection, this isolator ensures total isolation from system media and accurate pressure transmission. Designed with a low profile to eliminate dead volume, this isolator is easy to install and maintain, offering optimal pressure containment and cost-effectiveness. With a stainless steel reinforced instrument connection and integral wrench provisions for field service and maintenance, this isolator is a reliable choice for ensuring reliability in institutional settings.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-100 PSI, Brass, Blk Pntd Steel
Specifications List Price
146.95 USD
Specifications Materials
PP, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
