Polypro TUFF GUARD Gauge Isolator with EPDM Diaphragm
Polypro TUFF GUARD Gauge Isolator with EPDM Diaphragm
SKU:GAU-84ac2d
Protect & isolate instruments with precision. Polypro body, EPDM diaphragm, 0-15 PSI Wika Gauge. Ideal for government procurement.
Regular price
$235.95
Regular price
Sale price
$235.95
Unit price
per
Initiate Order
Polypro TUFF GUARD Gauge Isolator with EPDM Diaphragm
$235.95
Quantity: 1
Claim Your Seller Account
Polypro TUFF GUARD Gauge Isolator with EPDM Diaphragm
$235.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

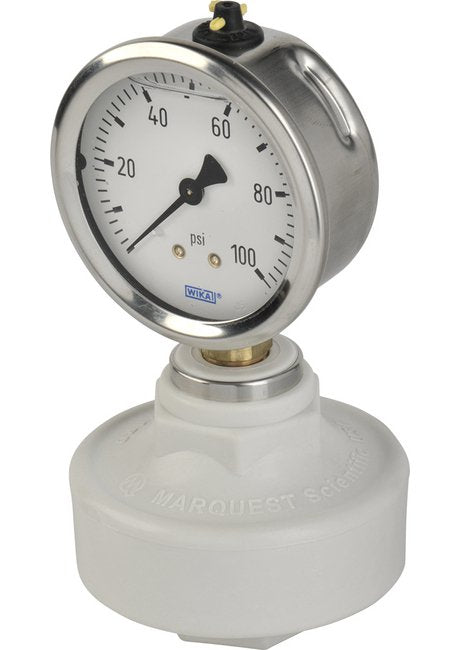

The Polypro TUFF GUARD Gauge Isolator with EPDM Diaphragm features a 1/2" Female NPT Inlet Connection and a durable Polypro body. Equipped with an impermeable EPDM diaphragm convoluted for accurate pressure transmission, this isolator protects and isolates pressure sensing instruments effectively. With a stainless steel reinforced instrument connection and a reinforced process connection, it ensures reliable performance. The low profile design eliminates dead volume, and the self-venting internal shape allows for easy filling. Ideal for institutional and government buyers seeking premium quality and compliance with industry standards.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-15 PSI, SS, Brass
Specifications List Price
235.95 USD
Specifications Materials
PP, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
