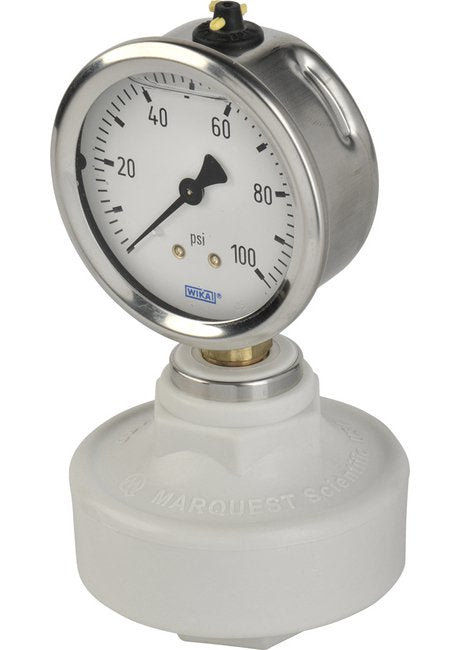

Polypro TUFF GUARD Gauge Isolator with Wika 2.5" SS/Brss Liquid Filled Gauge
Polypro TUFF GUARD Gauge Isolator with Wika 2.5" SS/Brss Liquid Filled Gauge
SKU:GAU-c7b0f4
Isolate pressure sensors accurately with Polypro TUFF GUARD Gauge Isolator & 2.5" SS/Brss Wika Gauge. Reliable, precise, & compliant.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Polypro TUFF GUARD Gauge Isolator with Wika 2.5" SS/Brss Liquid Filled Gauge
$199.99
Quantity: 1
Claim Your Seller Account
Polypro TUFF GUARD Gauge Isolator with Wika 2.5" SS/Brss Liquid Filled Gauge
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance pressure sensing accuracy with the Polypro TUFF GUARD Gauge Isolator featuring a PTFE diaphragm and stainless brass 0-200 PSI Wika gauge. This isolator boasts a low profile design, convoluted diaphragm for precise pressure transmission, and reinforced instrument connections. It provides total isolation from system media while meeting ANSI Schedule 120 standards. Self-venting design and easy maintenance ensure reliable performance. Ideal for applications requiring chemical resistance and purity, fulfilling the stringent needs of institutional and government buyers.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-200 PSI, SS, Brass
Specifications List Price
230.95 USD
Specifications Materials
PP, PTFE Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
