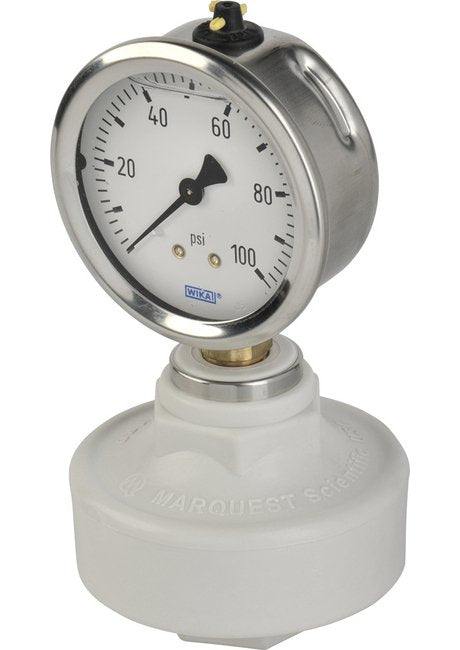

Polypro TUFF GUARD Gauge Isolator with Wika SS/Brss 2.5" Gauge
Polypro TUFF GUARD Gauge Isolator with Wika SS/Brss 2.5" Gauge
SKU:GAU-f85ad0
Isolate pressure efficiently with Polypro TUFF GUARD Gauge Isolator & Wika SS/Brss 2.5" Gauge
Regular price
$230.95
Regular price
Sale price
$230.95
Unit price
per
Initiate Order
Polypro TUFF GUARD Gauge Isolator with Wika SS/Brss 2.5" Gauge
$230.95
Quantity: 1
Claim Your Seller Account
Polypro TUFF GUARD Gauge Isolator with Wika SS/Brss 2.5" Gauge
$230.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top-tier pressure isolation with the Polypro TUFF GUARD Gauge Isolator featuring a robust PTFE diaphragm for precise pressure transmission, stainless brass 0-160 PSI Wika gauge, and 1/2" NPT inlet connection. Engineered for total system media isolation, low maintenance, and simple installation. The reinforced construction meets ANSI standards for durability and reliability, ensuring long-term instrument protection. Benefit from a 3-year warranty for added peace of mind.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-160 PSI, SS, Brass
Specifications List Price
230.95 USD
Specifications Materials
PP, PTFE Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
