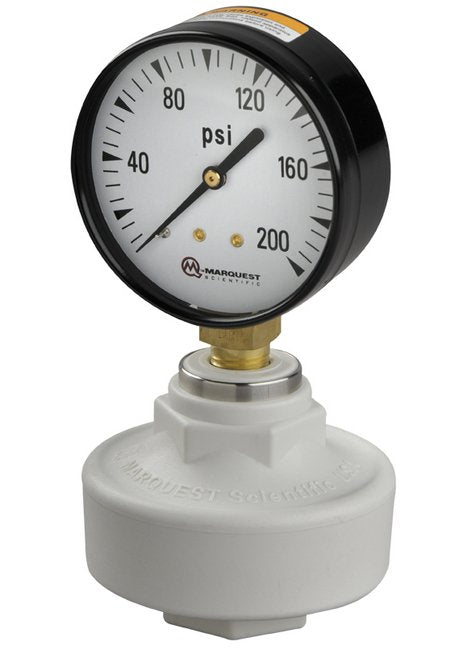

Polypro TUFF GUARD Isolator with Economy Gauge
Polypro TUFF GUARD Isolator with Economy Gauge
SKU:GAU-cd2d16
Protect & isolate pressure instruments with Polypro TUFF GUARD Isolator w/ Economy Gauge. Accurate & reliable. Compliant with institutional standards.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Polypro TUFF GUARD Isolator with Economy Gauge
$149.99
Quantity: 1
Claim Your Seller Account
Polypro TUFF GUARD Isolator with Economy Gauge
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance pressure sensing accuracy with the Polypro TUFF GUARD Isolator featuring an impermeable EPDM diaphragm. This isolator boasts a 1/4" female NPT inlet connection, stainless steel reinforced instrument connection, and compressive spoke ribs for stress transfer. It ensures total isolation from system media, accurate pressure transmission with its convoluted diaphragm, and a low profile design that eliminates dead volume. Opt for easy installation, maintenance, and a 3-year warranty. Complies with stringent institutional procurement standards for reliable performance.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-15 PSI, Brass, Blk Pntd Steel
Specifications List Price
146.95 USD
Specifications Materials
PP, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
