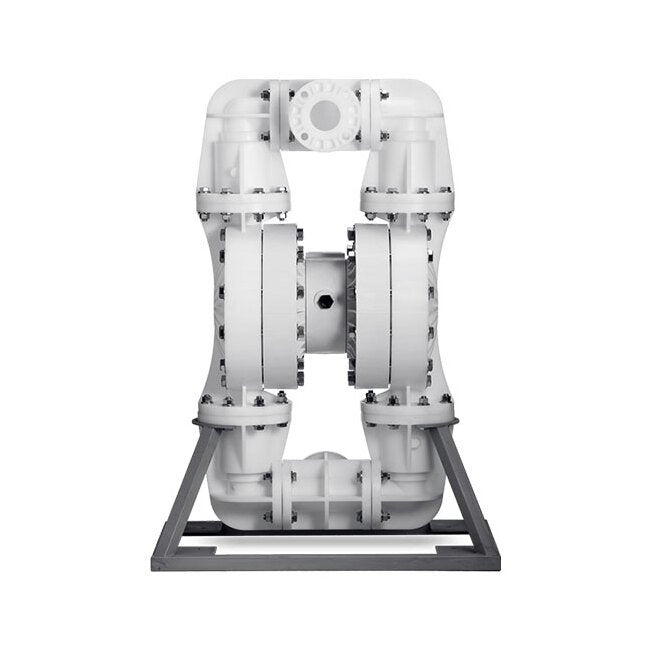

Polypropylene Pwr-Flo™ 3" AODD Pump with PTFE-UFI Santoprene® Diaphragm
Polypropylene Pwr-Flo™ 3" AODD Pump with PTFE-UFI Santoprene® Diaphragm
SKU:MAN-d3959d
Efficient and reliable Polypropylene Pwr-Flo™ AODD Pump with PTFE-UFI Santoprene® diaphragm for seamless liquid handling.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Polypropylene Pwr-Flo™ 3" AODD Pump with PTFE-UFI Santoprene® Diaphragm
$1,299.99
Quantity: 1
Claim Your Seller Account
Polypropylene Pwr-Flo™ 3" AODD Pump with PTFE-UFI Santoprene® Diaphragm
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Polypropylene Pwr-Flo™ AODD Pump is a top-tier solution that excels as a drop-in replacement for Wilden® pumps. Its air-driven double diaphragm system effortlessly handles large solids and slurries, thanks to the PWR-FLO™ asymmetrical spool design that ensures efficient air utilization. With chemically resistant polypropylene components, this pump guarantees exceptional reliability for on/off liquid transfer tasks such as filling and batching applications. Featuring a PTFE-UFI Santoprene® diaphragm and Viton® encapsulated elastomers, this pump offers durability and longevity, making it an ideal choice for demanding industrial environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

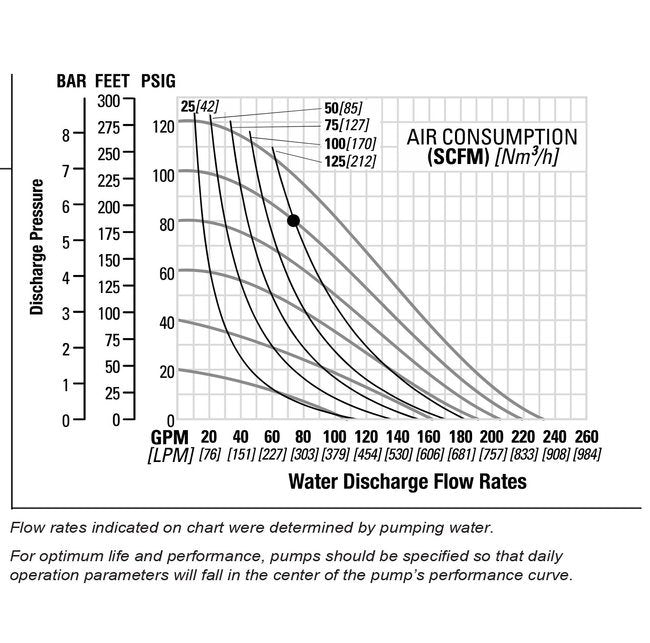

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Viton® Encapsulated
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
PTFE - UFI Santoprene® back up
Specifications Displacement Per Cycle
0.99 gal | 3.75 lit
Specifications Elastomers
Viton® Encapsulated, PTFE
Specifications Fluid Inlet Size
3 in | 76 mm
Specifications Fluid Outlet Size
3 Flange in | 76 Flange mm
Specifications Height
50 Inch | 50 in | 1.2776 m | 1277.62 mm
Specifications Length
36 Inch | 36 in | 0.9144 m | 914.40 mm
Specifications Max Flow Rate
207 gpm | 783.58 lpm
Specifications Model
NPF80/PPPP/TFF/TF/PTV/FL/B/W
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-120062-1
Specifications Solids Handling
0.5 in | 13 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
23 Inch | 23 in | 0.5842 m | 584.20 mm
