Polypropylene Standard Duty Non-Metallic Diaphragm Pump

Name: Polypropylene Standard Duty Non-Metallic Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-e007a3

SKU:PRO-e007a3

Reliable and efficient Polypropylene Diaphragm Pump for diverse liquid dispensing needs.

$359.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

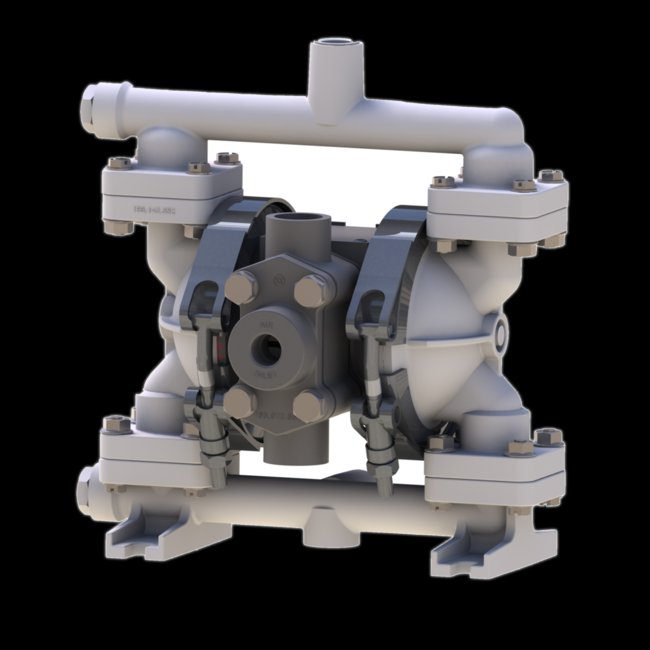

Ideal for OEM applications, the PB1/4-A Polypropylene Standard Duty Non-Metallic Diaphragm Pump by Sandpiper is designed for reliability and efficiency. With a non-stalling, non-icing, lube-free operation, this pump offers chemical resistance and abrasion resistance, making it perfect for dispensing various liquids like inks, coatings, and adhesives. Its compact and lightweight design, along with flexible mounting and porting options, ensure ease of use and maintenance, meeting the needs of both consumer and institutional buyers.

Product Specifications

Curves 0

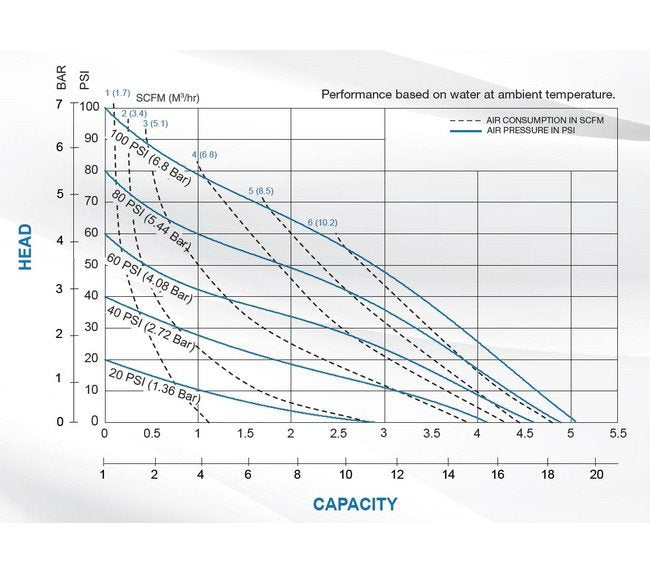

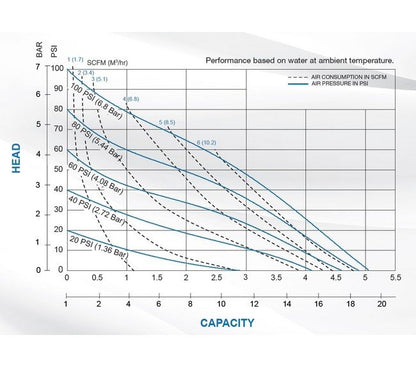

Performance Curves

Dimensions 0

Dimensions

Specifications Check Valve Type

Ball

Specifications Discharge Pipe Size External

1/2" NPT

Specifications Discharge Pipe Size Internal

1/4" NPT

Specifications Elastomers

Hytrel

Specifications Height

8 in | 200.66 mm

Specifications Inlet Size

0.25 NPT in | 6 NPT mm | 0.25" NPT

Specifications Intake Pipe Size External

1/2" NPT

Specifications Intake Pipe Size Internal

1/4" NPT

Specifications Length

8 in | 0.1910 m | 191.01 mm

Specifications Max Flow Rate

5 gpm | 300.00 gph | 18.93 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

0.25 NPT in | 6 NPT mm | 0.25" NPT

Specifications Sku

WRPB14TR4PPSP

Specifications Solids Handling

0.03125 in | 1 mm

Specifications Weight

3.3 lbs | 1.50 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

5 in | 0.1394 m | 139.45 mm

Category 6

Standard Duty Diaphragm Pumps

Polypropylene Standard Duty Non-Metallic Diaphragm Pump
