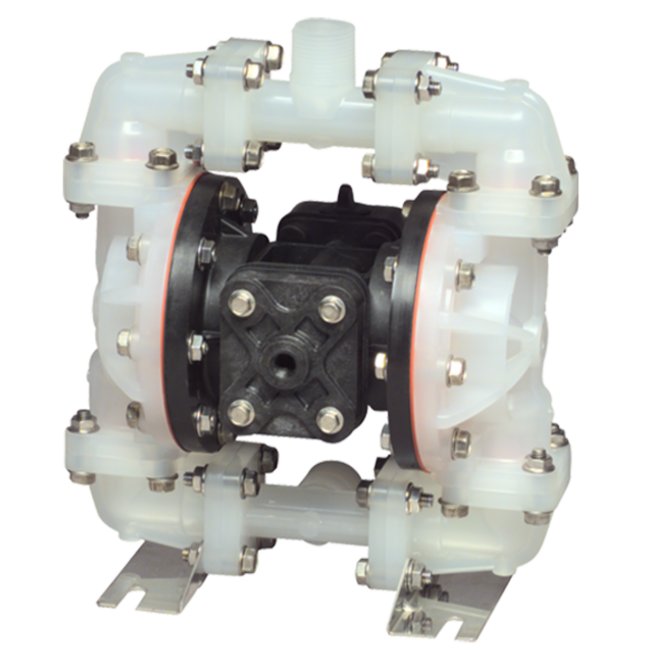

Polypropylene Top Discharge Diaphragm Pump

Name: Polypropylene Top Discharge Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-f6db4e
Price: 799.99 USD
Availability: OutOfStock

SKU:PRO-f6db4e

Durable Polypropylene Diaphragm Pump for portable and abrasive fluid handling. Max flow rate: 0.026 gpm.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Polypropylene Top Discharge Diaphragm Pump is the ideal solution for intermittent, portable applications handling moderately abrasive fluids and suspended solids. Constructed with Polypropylene materials, PTFE check valve seat, and TPE diaphragms, this pump ensures durability and efficiency. With a max flow rate of 0.026 gpm, this pump offers reliable performance for waste water and utility applications.

Product Specifications

Curves 0

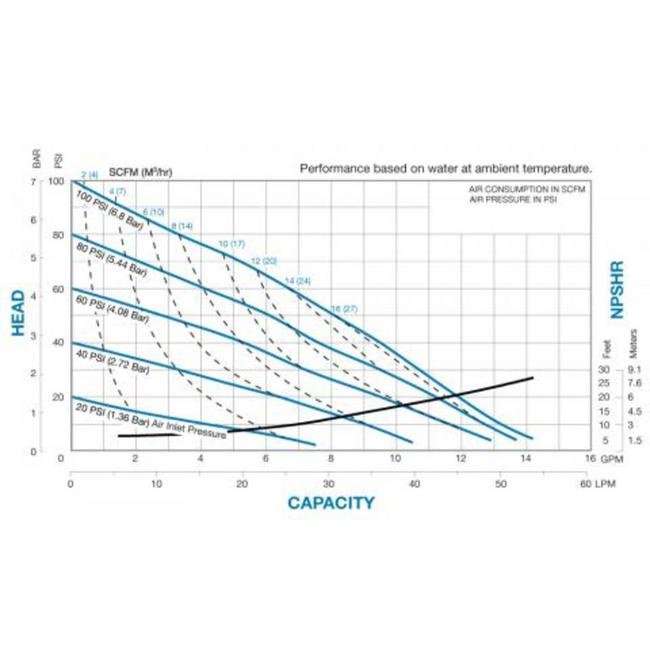

Performance Curves

Specifications Check Valve Seat

PTFE

Specifications Customs Code

HS Code 84131900

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

12 in | 293.12 mm

Specifications Inlet Size

0.5 NPT in | 13 NPT mm

Specifications Length

10 in | 256.79 mm

Specifications Max Flow Rate

0.026 gpm | 1.56 gph | 0.10 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

0.5 NPT in | 13 NPT mm

Specifications Porting Position

Top Discharge

Specifications Sku

WRS05B2PUTPNS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Weight

11 lbs | 4.99 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

7 in | 181.10 mm

Category 6

Standard Duty Diaphragm Pumps

Polypropylene Top Discharge Diaphragm Pump
