Polyurethane Smart Pad SMP620N
Polyurethane Smart Pad SMP620N
SKU:POL-5d8078
The Polyurethane Smart Pad SMP620N - Bend radii from 1/2" to 2" with ease. Ideal for precise radiused shapes in one hit.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Polyurethane Smart Pad SMP620N
$199.99
Quantity: 1
Claim Your Seller Account
Polyurethane Smart Pad SMP620N
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

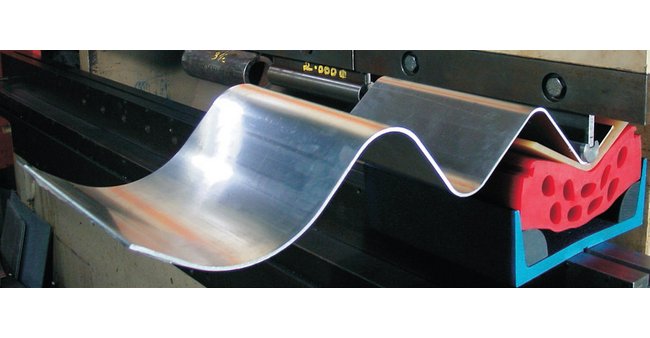

The Polyurethane Smart Pad SMP620N is a versatile solution designed to bend radii ranging from 1/2"(12mm) to 2"(50mm) effortlessly in 90° angles, making it ideal for creating various radiused shapes in one hit. With a minimum punch width of 1-1/2 in | 38 mm and a maximum of 3 in | 75 mm, this smart pad offers precise and consistent results. It also boasts a maximum depth of punch penetration of 1-1/4 in | 32 mm, enabling efficient and accurate bending. The minimum radius for mild steel of 1 in | 25 mm further enhances its flexibility for a range of applications.
Product Specifications
Limitations Maximum Depth Of Punch Penetration
1-1/4 in | 32 mm
Limitations Maximum Punch Width
3 in | 75 mm
Limitations Minimum Punch Width
1-1/2 in | 38 mm
Limitations Minimum Radius
1/2 in | 12 mm
Radii And Gauge Minimum Radius For Mild Steel
1 in | 25 mm
