Portable Air Filtration System - Mobile Prep Station 5460
Portable Air Filtration System - Mobile Prep Station 5460
SKU:POR-fb4c83
Enhance safety and productivity with the Mobile Prep Station 5460 - ideal for industrial and governmental uses. EPA 6H compliant with customizable filtration options for diverse applications.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Portable Air Filtration System - Mobile Prep Station 5460
$2,999.99
Quantity: 1
Claim Your Seller Account
Portable Air Filtration System - Mobile Prep Station 5460
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

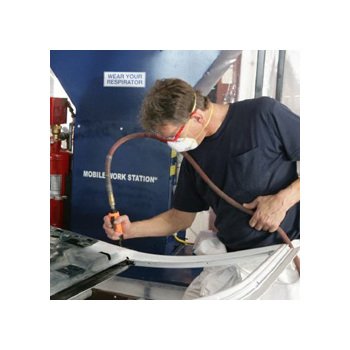

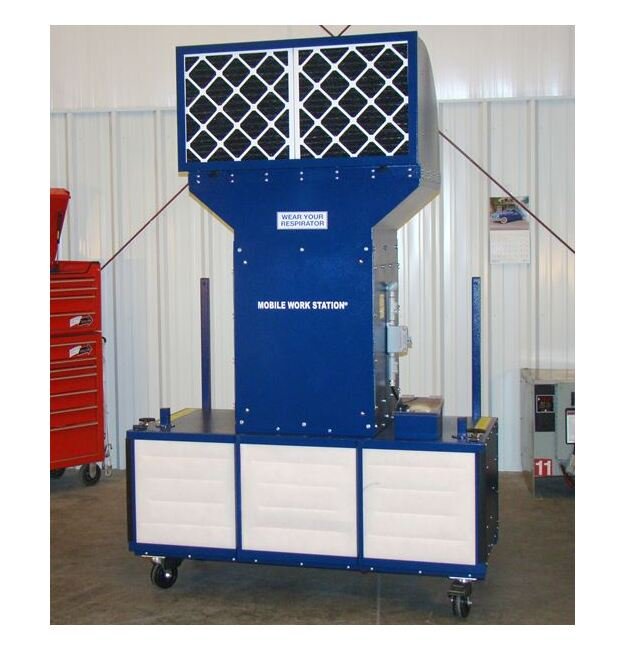

The Mobile Prep Station 5460 is a versatile portable air filtration system designed for industrial and governmental applications. With adjustable filter racks, it offers customizable filtration for various airborne particulates and fumes, enhancing safety and productivity. This EPA 6H compliant system features a 1 1/2 hp motor, fire suppression system, and durable 14-gauge steel construction. From paint overspray to welding fume extraction, this unit ensures reliable performance and safety in hazardous locations.
Product Specifications
Durable Construction 0
Manufactured using 14 gauge powder coated steel for long lasting durability and performance.
Efficient Filtration 0
Uses standard sized 20" x 20" filters, which are easy to replace. The standard filter set included for its multi-stage filtration system has two sets particulate filters and two sets carbon filters for the removal of odors and VOC's. The 3-Ply Link Panel filters have tested at 99.78 % efficient on paint overspray. In addition, there is a magnehelic gauge to monitor filter efficiency.
Low Maintenance 0
There are no bearings to grease or belts to change with its sealed direct drive motor.
Options 0
Units can be ordered without the fire suppression system and/or with an attached curtain enclosure system. Units which include the attached curtain enclosure system have been certified EPA 6H compliant
Safety 0
Fire Suppression System, hazardous location motor, hazardous location controls, aluminum fan wheel and aluminum inlet cone.
Savings 0
The recirculation design eliminates the need for ventilation modifications or make-up air systems, and reduces energy costs by utilizing existing heated or cooled air. The backward curved non-overloading fan wheel is constructed with hollow airfoil blades. The fan wheels are statically and dynamically balanced to provide higher airflow performance at less horsepower, and with minimum air noise.
Specifications Certification
EPA 6H compliant
Specifications Equipment Dimensions
61 x 32 x 94 1/2 in
Specifications Filter Size
20 x 20 in
Specifications Power Rating
1 1/2 hp
Specifications Power Requirement Frequency
60 Hz
Specifications Power Requirement Phase
Single
Specifications Power Requirement Voltage
115 V | 230 V
