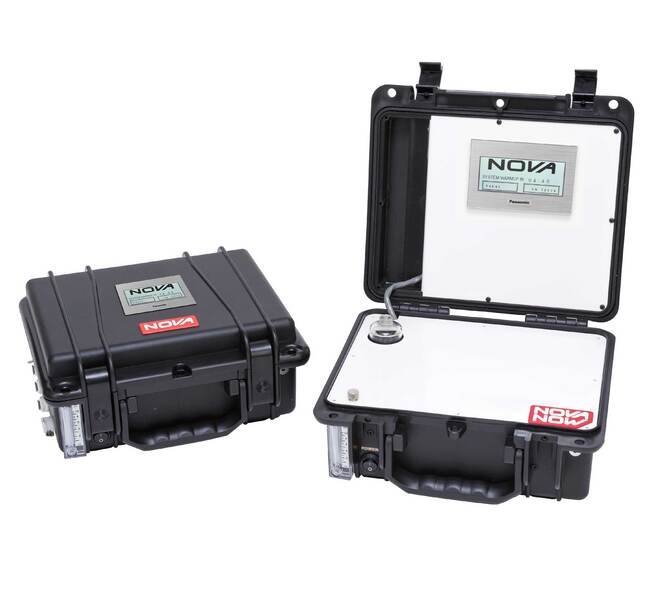

The Nova 317 Series Portable Hydrocarbon Analyzer is designed for the measurement of propane or gasoline vapor (using a correction factor) from a closed vessel. The built-in sampling pump draws in a sample through an external hose where it then passes through a filter, flow meter and infrared detector for measurement. The measurement results are then displayed on an easy-to-read digital meter with switchable backlight. A built-in rechargeable battery has enough power for about 5 hours of continuous operation and the analyzer can be used while it is recharging. A red LED indicates when to recharge the analyzer and a green LED indicates that it is receiving recharging power. A recharger is included.
Product Specifications
Applications 0
For analysis of propane or gasoline vapors from a closed vessel or from a closed transfer line, such as with gas station vapor recovery applications.
Calibration 0
Air for zero. 100% propane for span.
Features 0
Rugged design that is easy to operate Fast warm-up and response Solid state infrared detector Calibrates on 100% propane; yields gasoline vapor measurement using a correction factor Digital readout meter with backlight Modular layout that is easy to maintain Rechargeable battery operation Built-in sample pump, filter and flow meter Suitcase style cabinet weatherproof when closed
Options 0
Recorder output - 4-20mA Suitcase (K) style cabinet available On-board data-logging to USB stick High HC alarm with display indication
Specifications Accuracy Repeatability
±2% of full scale
Specifications Alarms
High HC Alarm (optional)
Specifications Ambient Temperature Range
0 to 50 ºC | 32 to 120 ºF
Specifications Drift
Less than 2% of full scale per week
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
±2% of full scale
Specifications Method Of Detection
NDIR infrared detector (no moving parts)
Specifications Output Options
4-20mA
Specifications Power
AC/DC Operation, 115 VAC / 60 Hz for recharging (220VAC / 50Hz also available)
Specifications Ranges Available
0-100% Propane (other ranges available)
Specifications Resolution
0.1% Propane
Specifications Response Time T 90
10-15 seconds
Specifications Size Weight
14" L x 6" H x 10 1/2" D @ 8 lbs (35.5 x 15.2 x 26.6 cm @ 3.6 kg)
Unique Applications 0
This instrument is not explosion-proof or 'intrinsically safe' design. User should observe all locally established precautionary measures when sampling potentially flammable or explosive spaces.All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
