Portable Battery Lift Magnet
Portable Battery Lift Magnet
SKU:BAT-f929f8
Versatile and portable battery-operated lift magnet for efficient material handling in industrial settings.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Portable Battery Lift Magnet
$2,499.99
Quantity: 1
Claim Your Seller Account
Portable Battery Lift Magnet
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Portable Battery Lift Magnet is a versatile and compact solution ideal for lifting heavy materials without the need for chains or slings. It operates independently of an electric power source, making it suitable for indoor and outdoor use. With a DC Voltage Rating of 12V and a lifting capacity of 11000 lb, this magnet is designed for handling high-density materials such as steel plates, forgings, and castings. Featuring a built-in battery charger, safe charge indicator, and optional remote control, this magnet ensures convenient and safe operation in industrial settings.
Product Specifications
Additional Features 0
Heavy duty On-Off-Rlease Switch located in front and recessed for safety, yet easy to reachA safe charge indicator tells at a glance the charge condition of the batteryBuilt-In-Battery charger plugs into any 115 Volt A.C. outletAll units are available with optional Remote Control using a heavy duty, hand held drum switch on a 6 ft. cord. (Must be specified at time of order.)Battery Lifts are complete with a 12 volt charger, automotive type battery and charger cable
Lifting Recommendations 0
These units are designed to handle high density material such as thick steel plate, blocks, smooth surfaced forgings, steel and cast iron castings, heavy, rigid, flat structural steel, burnouts, etc. They are extremely useful in lifting heavy work on and off grinders, mills, drill presses, etc. Material such as light gauge sheet metal or any material that bends or flexes excessively, small parts, shavings, turnings, scrap, etc. cannot be handled efficiently by this type of magnet.Battery Lift Magnets are rated using a machined, flat, low carbon steel plate. The test plate used for Battery Lift 2000 and 3000 is a minimum of 1 1/4 in. thick; on Battery Lift 5000, 11000 and 11500 the test plate is 2 in. thick. From this break-away test the magnets are derated by 50%. Material thinner than the test plates may be handled safely but consideration must be given to the reduced holding capacity of the magnet. As the material becomes thinner, there is less mass the magnetic force has upon which to act. Always snatch the load as close to the floor as possible to assure positive contact and a clean lift.
Specifications Capacity
11000 lb
Specifications Cord Length
6 ft
Specifications Dc Voltage Rating
12 V

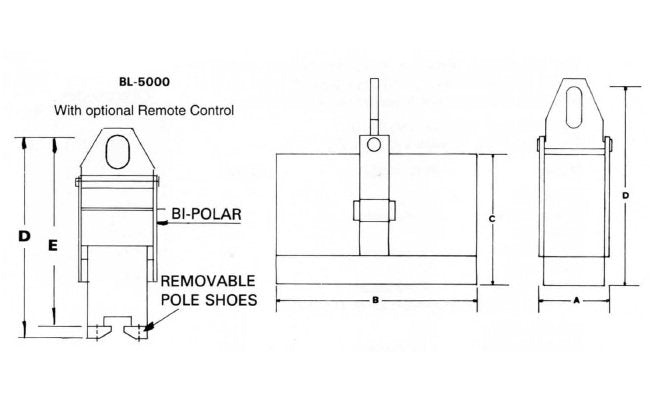

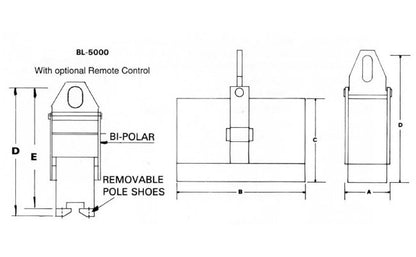

Specifications Dimension A
17 3/4 in
Specifications Dimension B
29 1/2 in
Specifications Dimension C
14 in
Specifications Dimension D
22 in
Specifications Minimum Test Plate Thickness
2 in
Specifications Weight
500 lb
