Portable Battery Operated Lift Magnet
Portable Battery Operated Lift Magnet
SKU:BAT-92d604
Versatile and compact lift magnet with 3000 lb capacity, 12V DC, and safety features for efficient industrial lifting.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Portable Battery Operated Lift Magnet
$1,899.99
Quantity: 1
Claim Your Seller Account
Portable Battery Operated Lift Magnet
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Portable Battery Operated Lift Magnet by Magnetool is a versatile and compact solution designed for both indoor and outdoor use without the need for chains or slings. Featuring a self-contained power source and a 12V DC Voltage rating, this magnet provides a lifting capacity of 3000 lb. It comes with a convenient 6 ft cord length and a variety of safety features including a heavy duty On-Off-Release Switch and a safe charge indicator. Ideal for handling high-density materials such as steel plates, forgings, and castings, this lift magnet ensures efficient and secure lifting operations for heavy industrial applications.
Product Specifications
Additional Features 0
Heavy duty On-Off-Rlease Switch located in front and recessed for safety, yet easy to reachA safe charge indicator tells at a glance the charge condition of the batteryBuilt-In-Battery charger plugs into any 115 Volt A.C. outletAll units are available with optional Remote Control using a heavy duty, hand held drum switch on a 6 ft. cord. (Must be specified at time of order.)Battery Lifts are complete with a 12 volt charger, automotive type battery and charger cable
Lifting Recommendations 0
These units are designed to handle high density material such as thick steel plate, blocks, smooth surfaced forgings, steel and cast iron castings, heavy, rigid, flat structural steel, burnouts, etc. They are extremely useful in lifting heavy work on and off grinders, mills, drill presses, etc. Material such as light gauge sheet metal or any material that bends or flexes excessively, small parts, shavings, turnings, scrap, etc. cannot be handled efficiently by this type of magnet.Battery Lift Magnets are rated using a machined, flat, low carbon steel plate. The test plate used for Battery Lift 2000 and 3000 is a minimum of 1 1/4 in. thick; on Battery Lift 5000, 11000 and 11500 the test plate is 2 in. thick. From this break-away test the magnets are derated by 50%. Material thinner than the test plates may be handled safely but consideration must be given to the reduced holding capacity of the magnet. As the material becomes thinner, there is less mass the magnetic force has upon which to act. Always snatch the load as close to the floor as possible to assure positive contact and a clean lift.
Specifications Capacity
3000 lb
Specifications Cord Length
6 ft
Specifications Dc Voltage Rating
12 V

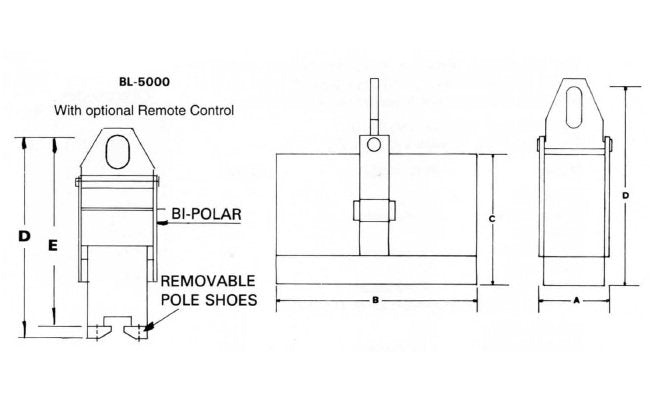

Specifications Dimension A
9 1/2 in
Specifications Dimension B
11 1/2 in
Specifications Dimension C
12 1/2 in
Specifications Dimension D
18 1/2 in
Specifications Minimum Test Plate Thickness
1 1/4 in
Specifications Weight
135 lb
