Portable Battery-Powered Lift Magnet
Portable Battery-Powered Lift Magnet
SKU:BAT-83cfdc
Versatile & compact lift magnet with self-contained power source for efficient heavy lifting operations.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Portable Battery-Powered Lift Magnet
$2,499.99
Quantity: 1
Claim Your Seller Account
Portable Battery-Powered Lift Magnet
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Portable Battery-Powered Lift Magnet by Magnetool is a versatile and compact solution for heavy lifting needs. With a self-contained power source, this lift magnet can be operated anywhere without the need for external power sources, chains, or slings. It features a heavy-duty On-Off-Release Switch for safety and ease of use, a safe charge indicator, and comes complete with a built-in battery charger. Ideal for handling high density materials like steel plates, forgings, and structural steel, this lift magnet ensures efficient and safe lifting operations for various industrial applications.
Product Specifications
Additional Features 0
Heavy duty On-Off-Rlease Switch located in front and recessed for safety, yet easy to reachA safe charge indicator tells at a glance the charge condition of the batteryBuilt-In-Battery charger plugs into any 115 Volt A.C. outletAll units are available with optional Remote Control using a heavy duty, hand held drum switch on a 6 ft. cord. (Must be specified at time of order.)Battery Lifts are complete with a 12 volt charger, automotive type battery and charger cable
Lifting Recommendations 0
These units are designed to handle high density material such as thick steel plate, blocks, smooth surfaced forgings, steel and cast iron castings, heavy, rigid, flat structural steel, burnouts, etc. They are extremely useful in lifting heavy work on and off grinders, mills, drill presses, etc. Material such as light gauge sheet metal or any material that bends or flexes excessively, small parts, shavings, turnings, scrap, etc. cannot be handled efficiently by this type of magnet.Battery Lift Magnets are rated using a machined, flat, low carbon steel plate. The test plate used for Battery Lift 2000 and 3000 is a minimum of 1 1/4 in. thick; on Battery Lift 5000, 11000 and 11500 the test plate is 2 in. thick. From this break-away test the magnets are derated by 50%. Material thinner than the test plates may be handled safely but consideration must be given to the reduced holding capacity of the magnet. As the material becomes thinner, there is less mass the magnetic force has upon which to act. Always snatch the load as close to the floor as possible to assure positive contact and a clean lift.
Specifications Capacity
5000 lb
Specifications Cord Length
6 ft
Specifications Dc Voltage Rating
12 V

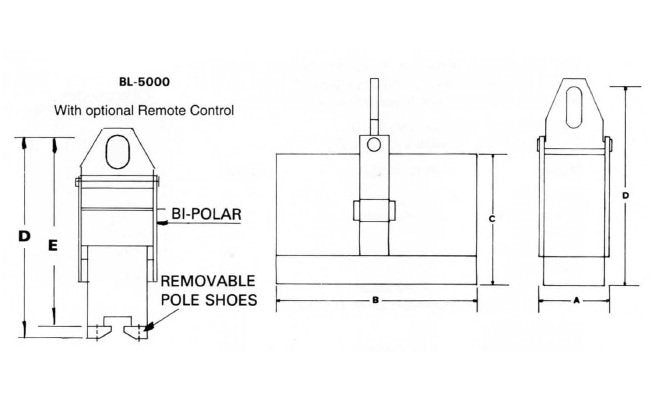

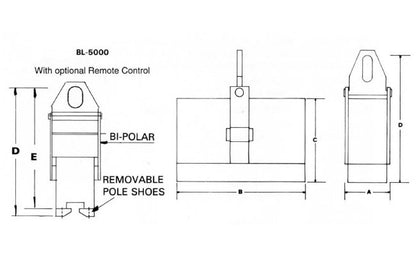

Specifications Dimension A
8 in
Specifications Dimension B
24 in
Specifications Dimension C
17 1/4 in
Specifications Dimension D
25 1/8 in
Specifications Dimension E
23 5/8 in
Specifications Weight
400 lb
