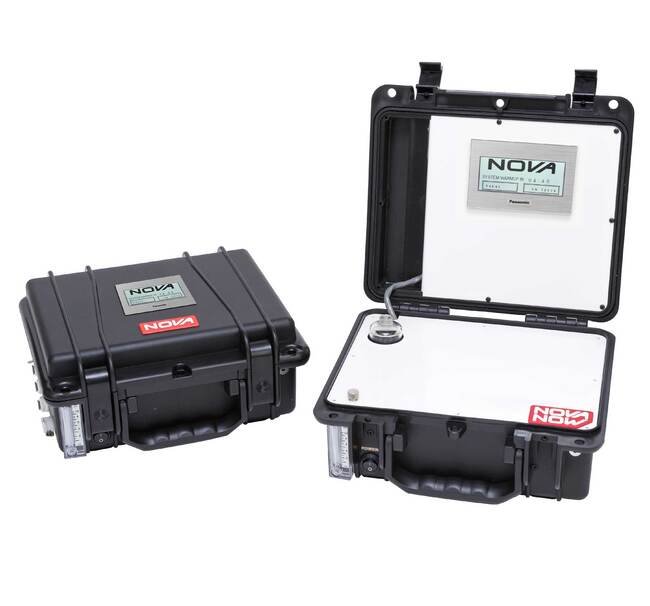

Portable Flue Gas Analyzer for Carbon Monoxide, Suitcase (K) Enclosure
Portable Flue Gas Analyzer for Carbon Monoxide, Suitcase (K) Enclosure
SKU:BYI-23c363
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Portable Flue Gas Analyzer for Carbon Monoxide, Suitcase (K) Enclosure
$49.99
Quantity: 1
Claim Your Seller Account
Portable Flue Gas Analyzer for Carbon Monoxide, Suitcase (K) Enclosure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova 310 Series Portable Flue Gas CO Analyzer utilizes a reliable, customer-replaceable electrochemical sensor which responds quickly to the CO present in the flue gas sample. Its life expectancy is between 3 and 4 years.In operation, a built-in sample pump draws in the flue gas sample through the probe, sample house, condensate removal filter, secondary filter, flow meter, and then on to the CO detector. The detected CO is displayed on a digital meter.A rechargeable battery powers the pump and electronics. The analyzer can still be operated while it is being charged. The analyzer is supplied with approximately 12 ft. (4 m) of sample hose and a short stainless steel tube probe.
Product Specifications
Applications 0
For boiler or furnace flue gas analysis where a continuous oxygen analyzer already exists, but carbon monixode (CO) must still be measured.
Calibration 0
Air for zero Analyzed calibration gas mixture of PPM CO in nitrogen for span.
Features 0
Rugged design that is easy to operate and maintain Fast warm-up and response Disposable, long life electrochemical CO sensor Rechargeable battery operation Use on flue gas from any fuel Choice of ranges: 0-200 up to 0-9999 PPM CO Built in sample pump, filter and flowmeter Condensate removal Rapid reading recovery after CO 'overdose' Stainless steel probe with sample hose
Options 0
Recorder output - 4-20mA Stack temperature readout Special sampling probes Sample pre-cooler Suitcase (K) style cabinet On-board data logging to USB stick
Specifications Accuracy Repeatability
Better than 1% of full scale, based on a 0-2000 PPM range
Specifications Ambient Temperature Range
0 to 50 ºC | 32 to 122 ºF
Specifications Analyzer Type
CO analyzer
Specifications Drift
Less than 1% full scale per month
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
Better than 1.0% of full scale
Specifications Method Of Detection
Customer replaceable electrochemical CO sensor
Specifications Output Options
4-20mA
Specifications Power
115 VAC / 60 Hz for recharging (220 VAC / 50 Hz available)
Specifications Ranges Available
0-200 up to 0-9999 PPM CO
Specifications Resolution
1 PPM in PPM range
Specifications Response Time T 90
20-30 seconds
Specifications Size Weight
approx. 26 x 18 x 13 cm @ 3.4 kg (10" x 7" x 5" @ 7.5lbs)
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
