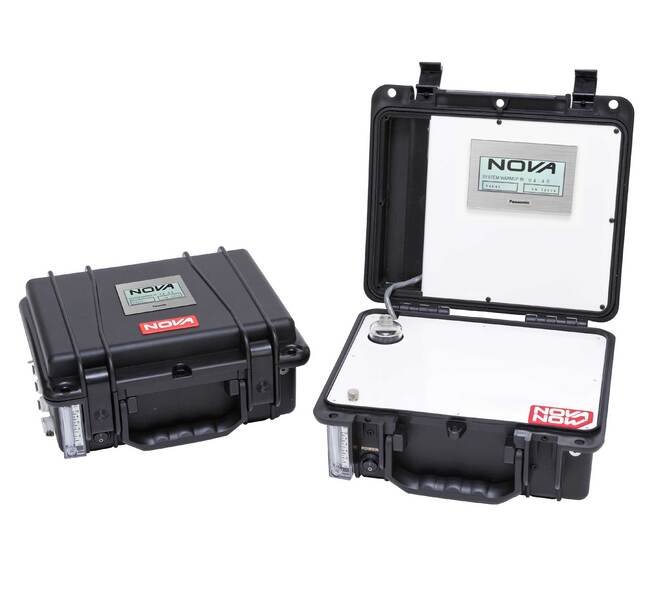

Portable Flue Gas Analyzer for Oxides Of Nitrogen, Suitcase (K) Enclosure
Portable Flue Gas Analyzer for Oxides Of Nitrogen, Suitcase (K) Enclosure
SKU:BYI-ad2bef
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Portable Flue Gas Analyzer for Oxides Of Nitrogen, Suitcase (K) Enclosure
$49.99
Quantity: 1
Claim Your Seller Account
Portable Flue Gas Analyzer for Oxides Of Nitrogen, Suitcase (K) Enclosure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova 312 Series Portable Flue Gas Analyzer for NOx utilizes a reliable, stable nitric oxide (NO) sensor which responds quickly to the NO present in flue gases or engine exhaust. NO is the major component (90-95%) of the NOx found in flue gases or engine exhaust (except diesel).In operation, a built in sample pump draws in the gas sample through the S.S. probe, 12 ft sample hose, condensate removal filter, secondary filter and flowmeter then on to the NO sensor. The detected NO is displayed on a digital meter.The rechargeable battery provides enough power for about 8 hours of operation and the analyzer can be used while it is being recharged. The recharger is included.
Product Specifications
Applications 0
Analysis of oxides of nitrogen (NOx) as nitric oxide (NO) for boiler, furnace, or engine exhaust.
Calibration 0
Air for zero Analyzed calibration gas mixture of PPM NO in air for span.
Features 0
Rugged design that is easy to operate and maintain Fast warm-up and response Disposable, long life electrochemical NO sensor Digital readout meter Rechargeable battery operation Built in sample pump, filter and flowmeter Active condensate removal Rapid recovery on NOx overdose Stainless steel probe with sample hose
Options 0
Recorder output - 4-20mA Stack temperature readout (312T) Special sampling probes Sample pre-cooler Suitcase (K) style cabinet available On-board data-logging to USB stick
Specifications Accuracy Repeatability
Better than 2% full scale
Specifications Ambient Temperature Range
12 to 49 ºC | 55 to 120 ºF
Specifications Drift
Within 1% full scale per 8 hours of continuous operation
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
±2% of full scale
Specifications Method Of Detection
Customer replaceable electrochemical NO sensor
Specifications Output Options
4-20mA
Specifications Power
12V battery operation. 115VAC 60Hz for recharging (220VAC 50Hz available)
Specifications Ranges Available
0-2000 PPM NOx (as NO)
Specifications Resolution
1 PPM NO
Specifications Response Time T 90
20-30 seconds for 90% of step change
Specifications Size Weight
approx. 26 x 18 x 13 cm @ 3.4 kg (10" x 7" x 5" @ 7.5lbs)
Unique Applications 0
Note: For proper operation, the sample gas should also contain a small amount of oxygen. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
