The Nova 360 Series are portable analyzers that can provide a detailed analysis of flue gas composition. They have been designed to be accurate, reliable, and easy to use and maintain. The sensors respond quickly to the oxygen and carbon monoxide (CO) present in the flue gas sample. The typical sensor life expectancy is between 3-4 years and they are customer-replaceable.In operation, a built-in sample pump draws in the flue gas sample through the S.S. probe, 12 ft. sample hose, condensate removal filter, secondary filter and flow meter, then on to the three sensors. The detected O2 and CO are displayed on separate LCD digital meters, which have a switchable backlight for use in dark areas. A special water separating filter and separate drain pump continuously remove condensate fro teh sample so the analyzer can be operated fro long periods unattended.The Nova 360T indicates net stack temperature for doing fuel efficiency calculations. The temperature sensor is built into the sampling probe. Efficiency charts for each fuel are provided.A rechargeable 'gel cell' battery provides enough power for about 16 hours of continuous operation and the analyzer can be used while it is being recharged. A red LED indicates when to recharge and a green LED verifies that it is receiving recharging power. The charger is included with the analyzer. The rugged dust-tight and water resistant case is suitable for use in harsh environments.
Product Specifications
Applications 0
Analysis of oxygen (O2) and carbon monoxide (CO). For checking combustion efficiency, air infiltration, and burner & control performance of furnaces, heaters and, boilers. May be used in commercial, industrial and residential settings.
Calibration 0
Air for O2 span and CO zeroAnalyzed mixture of CO in nitrogen for CO span and O2 zero
Features 0
Rugged design that is easy to operate and maintain Fast warm-up and responseDigital readout meter with backlightRechargeable battery operationBuilt in pump, filter, flow meter, and continuous condensate removalWeatherproof (WP) cabinet with clear Lexan coverStainless steel probe with sample hose For use on any fuelLong life detector cells for O2 and CO (customer replaceable)Dual CO range: 0-2000 PPM and 0-4.00% CORapid CO reading recovery on CO 'overdose' Pays for itself in months through fuel savings
Options 0

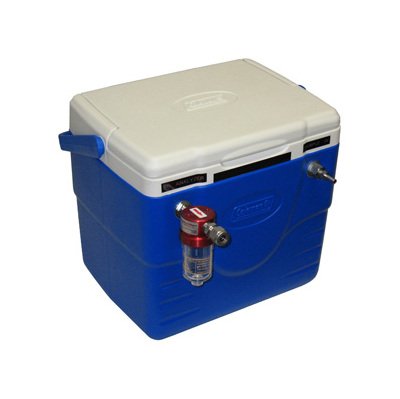

Recorder outputs of 0-1 V or 4-20 mAstack temperature readout (360T)Special sampling probesSample pre-coolerSuitcase (K) style cabinet availableAC power only operation, with HD sample pumpHigh CO alarm with LEDDetachable/portable data logger
Specifications Accuracy Repeatability
±1% of O2, ± 1 PPM CO
Specifications Alarms
High CO alarm with LED
Specifications Ambient Temperature Range
0 to 40 ºC | 32 to 105 ºF
Specifications Drift
±1% of full scale per 8 hours of continuous operation
Specifications Industry Type
Steel Making
Specifications Linearity
±1% of full scale of each gas measured
Specifications Method Of Detection
Customer replaceable electrochemical O2 and CO sensors
Specifications Output Options
4-20 mA or 0-1 VDC
Specifications Power
AC/DC Operation, 115 VAC 60 Hz for recharging (Other voltages available)
Specifications Primary Gas To Be Measured
Flue Gas or Emissions
Specifications Ranges Available
0-1800°F (0-1000°C) net stack temperature | 0-25.0% O2; 0-2000 PPM to 0-4.00% CO (switch selectable)
Specifications Resolution
0.1% O2, 1 PPM CO
Specifications Response Time T 90
5-8 seconds for O2 and CO
Specifications Size Weight
Suitcase (K) Style: 14" L x 10 1/2" W x 6" H @ 12 lbs (36 x 27 x 15cm @ 5.5 kg) | Weatherproof (WP) Style: 10" L x 7 1/2" H x 8" D @ 8 lbs (25 x 19 x 20 cm @ 3.6 kg)
Specifications Unique Applications
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
