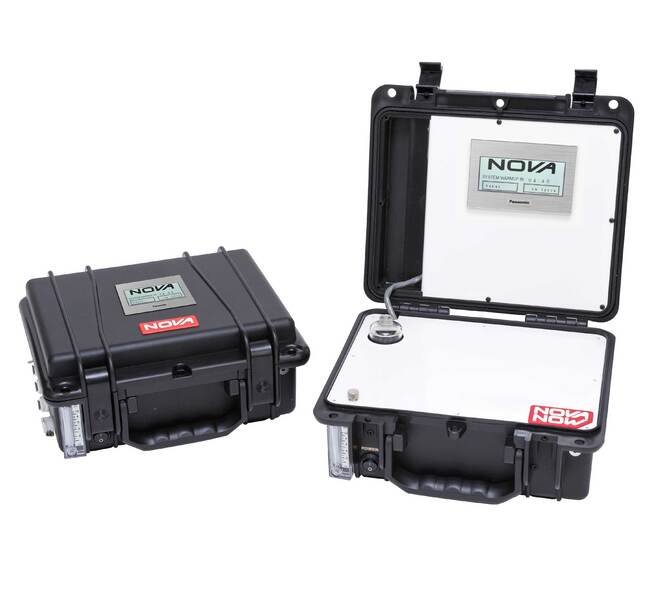

Portable Flue Gas Analyzer for Oxygen and Carbon Monoxide, Suitcase (K) Enclosure
Portable Flue Gas Analyzer for Oxygen and Carbon Monoxide, Suitcase (K) Enclosure
SKU:BYI-c7be21
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Portable Flue Gas Analyzer for Oxygen and Carbon Monoxide, Suitcase (K) Enclosure
$49.99
Quantity: 1
Claim Your Seller Account
Portable Flue Gas Analyzer for Oxygen and Carbon Monoxide, Suitcase (K) Enclosure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova 360 Series are portable analyzers that can provide a detailed analysis of flue gas composition. They have been designed to be accurate, reliable, and easy to use and maintain. The sensors respond quickly to the oxygen and carbon monoxide (CO) present in the flue gas sample. The typical sensor life expectancy is between 3-4 years and they are customer-replaceable.In operation, a built-in sample pump draws in the flue gas sample through the S.S. probe, 12 ft. sample hose, condensate removal filter, secondary filter and flow meter, then on to the three sensors. The detected O2 and CO are displayed on a digital meter.The Nova 360T indicates net stack temperature for doing fuel efficiency calculations. The temperature sensor is built into the sampling probe. Efficiency charts for each fuel are provided.A rechargeable battery provides enough power for about 8 hours of operation and the analyzer can be used while it is being recharged. Recharger is included with the analyzer.
Product Specifications
Applications 0
Analysis of oxygen (O 2 ) and carbon monoxide (CO). For checking combustion efficiency, air infiltration, and burner & control performance of furnaces, heaters and boilers. May be used in commercial, industrial and residential settings.
Calibration 0
Air for O2 span and CO zero Analyzed mixture of CO in nitrogen for CO span and O2 zero
Features 0
Rugged design that is easy to operate and maintain Fast warm-up and response Digital readout meter Rechargeable battery operation Built in pump, filter, flow meter, and continuous condensate removal Suitcase cabinet (K) is weatherproof when closed Stainless steel probe with sample hose For use on any fuel Long life detector cells for O2 and CO (customer replaceable) Rapid CO reading recovery on CO 'overdose' Pays for itself in months through fuel savings
Options 0
Recorder output - 4-20mA stack temperature readout (360T) Special sampling probes Sample pre-cooler Suitcase (K) style cabinet available Data-logging to USB stick
Specifications Accuracy Repeatability
±1% of O2, ± 1 PPM CO
Specifications Ambient Temperature Range
0 to 40 ºC | 32 to 105 ºF
Specifications Drift
±1% of full scale per 8 hours of continuous operation
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
±1% of full scale of each gas measured
Specifications Method Of Detection
Customer replaceable electrochemical O2 and CO sensors
Specifications Output Options
4-20mA
Specifications Power
12V battery operation. 115VAC 60Hz for recharging (220VAC 50Hz available)
Specifications Ranges Available
0-1800°F (0-1000°C) net stack temperature | 0-25.0% O2, 0-2000 PPM to 0-4.00% CO (switch selectable)
Specifications Resolution
0.1% O2, 1 PPM CO
Specifications Response Time T 90
10-15 seconds for O2 and CO
Specifications Size Weight
approx. 26 x 18 x 13 cm @ 3.4 kg (10" x 7" x 5" @ 7.5lbs)
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
