Portable Flue Gas Analyzer for Oxygen, Carbon Monoxide and Carbon Dioxide, Suitcase (K) Enclosure
Portable Flue Gas Analyzer for Oxygen, Carbon Monoxide and Carbon Dioxide, Suitcase (K) Enclosure
SKU:BYI-bf9dfb
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Portable Flue Gas Analyzer for Oxygen, Carbon Monoxide and Carbon Dioxide, Suitcase (K) Enclosure
$49.99
Quantity: 1
Claim Your Seller Account
Portable Flue Gas Analyzer for Oxygen, Carbon Monoxide and Carbon Dioxide, Suitcase (K) Enclosure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

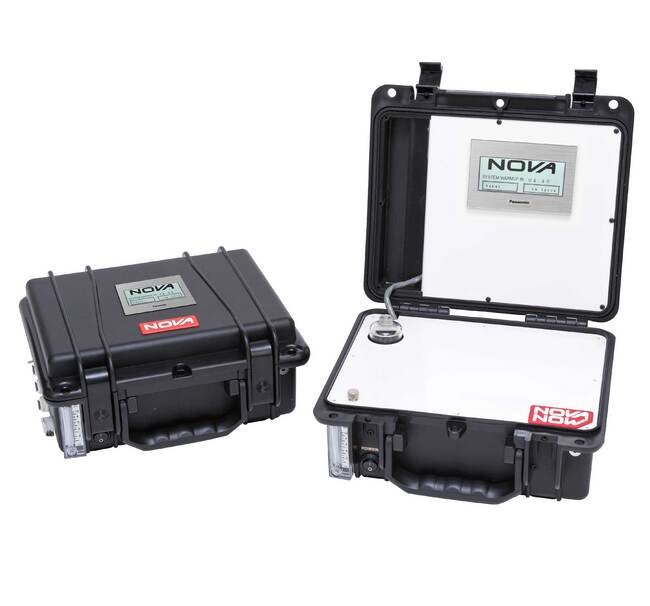

The Nova 375 Series Portable Flue Gas Analyzers have been designed for accuracy, reliability, ease of use and ease of service, providing a detailed analysis of flue gas composition. The sensors respond quickly to oxygen, CO2, and CO present in the flue gas sample. The O2 and CO sensor life expectancy is between 3 and 4 years. The CO2 infrared detector life is infinite under normal conditions of use, unless contaminated. The O2 and CO sensors are customer-replaceable. The infrared CO2 detector should not need to be replaced.In operation, a built-in sample pump draws in the flue gas sample through the S.S. probe, 12 ft. (4 m) sample hose, condensate removal filter, secondary filter and flow meter and then on to the three sensors. The detected O2, CO2 and CO are displayed on a digital meter.The Nova 375T version also indicates stack temperature for doing fuel efficiency calculations. The temperature sensor is built into the sampling probe. Efficiency charts for each fuel are provided.A rechargeable battery provides enough power for about 8 hours of continuous operation and the analyzer can be used while it is being recharged. The recharger is included.
Product Specifications
Applications 0
Analysis of oxygen (O 2 ), carbon monoxide (CO), and carbon dioxide (CO 2 ). For checking the combustion efficiency and burner & control performance of furnaces, heaters, and boilers. May be used in commercial, industrial, and residential settings.
Calibration 0
Air for O2 span and CO/CO2 zero Analyzed gas mixtures of CO2 and CO in nitrogen for span
Features 0
Rugged design that is easy to operate Fast warm up and response CO2 actually measured by infrared detector, not calculated Rapid reading recovery after CO 'overdose' Digital readout meter Modular design that is easy to maintain Rechargeable battery operation Built in sample pump, filter and flow meter Active condensate removal Suitcase cabinet (K) is weatherproof Stainless steel probe with sample hose
Options 0
Outputs 4-20mA Stack temperature readout (375T) Special sampling probes Suitcase (K) style cabinet available Data logging to USB stick
Specifications Accuracy Repeatability
2% of full scale for O2 and CO2; ±10 PPM CO
Specifications Ambient Temperature Range
0 to 40 ºC | 32 to 105 ºF
Specifications Drift
<2% full scale per 8 hours of continuous operation
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
±1.0% of full scale for each gas measured
Specifications Method Of Detection
Customer replaceable electrochemical oxygen and CO sensors | Solid state infra-red detector for CO2
Specifications Output Options
4-20mA
Specifications Power
115VAC 60Hz for recharging (220VAC 50Hz available)
Specifications Ranges Available
0-1800°F (0-1000°C) stack temperature | 0-20.0% CO2 | 0-2000 PPM and 0-4.00% CO - Switch selectable | 0-25.0% Oxygen
Specifications Resolution
0.1% O2, 1 PPM on CO and CO2
Specifications Response Time T 90
10-15 seconds for O2; 20-30 seconds for CO and CO2
Specifications Size Weight
approx. 26 x 18 x 13 cm @ 3.4 kg (10" x 7" x 5" @ 7.5lbs)
Unique Applications 0
The 375 Series should not be used for detecting these gases in ambient atmospheres for personnel safety purposes. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
