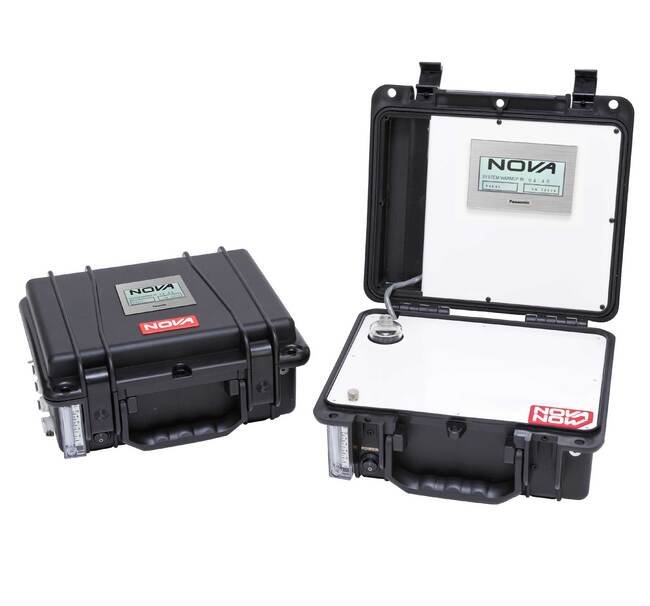

Portable Flue Gas Analyzer for Oxygen & Combustibles, Suitcase (K) Enclosure
Portable Flue Gas Analyzer for Oxygen & Combustibles, Suitcase (K) Enclosure
SKU:BYI-9dd380
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Portable Flue Gas Analyzer for Oxygen & Combustibles, Suitcase (K) Enclosure
$49.99
Quantity: 1
Claim Your Seller Account
Portable Flue Gas Analyzer for Oxygen & Combustibles, Suitcase (K) Enclosure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova 350 Series Portable Flue Gas Analyzer has been designed for accuracy, reliability, ease of use and ease of service. It uses customer replaceable sensors which respond quickly to the Oxygen (O2) and combustibles present in the flue gas sample.In operation, a built-in sample pump draws in the flue gas sample through the stainless steel probe, 12 ft. (4 m) sample hose, condensate removal filter, secondary filter, flowmeter, then on to the oxygen and combustibles sensors. The detected O2 and combustibles are displayed on a digital meter.A rechargeable battery provides enough power for about 6 hours of operation and the analyzer can be used while it is being recharged. The recharger is included.The Nova 350T indicates stack temperature for doing fuel efficiency calculations. The temperature sensor is built into the sampling probe. Efficiency charts for each fuel are provided.
Product Specifications
Applications 0
Analysis of oxygen (O 2 ) and combustibles. For checking the combustion efficiency, and burner & control performance of furnaces, heaters, and boilers. May be used in commercial, industrial, and residential settings.
Calibration 0
Air for O2 span and combustibles zero. Analyzed mixture of carbon monoxide (CO), methane (CH4), or hydrogen (H2) in nitrogen (N2) for combustibles span and O2 zero.
Features 0
Rugged design that is easy to operate and maintain Fast warm-up and response Long-life catalytic combustibles sensor Long-life electrochemical O2 sensor Digital readout meters Rechargeable battery operation Built in sample pump, filter and flow meter Active condensate removal Stainless steel probe with sample hose Use on flue gas from any fuel Pays for itself in months through fuel savings Suitcase cabinet (K), weatherproof when closed
Options 0
Recorder output - 4-20mA Stack temperature readout (Model 350T) High temperature probes Sample pre-cooler Suitcase (K) style cabinet available On-board data-logging to USB stick
Specifications Accuracy Repeatability
±1% full scale, based on 20.9% O2; ± 2% of full scale combustibles
Specifications Ambient Temperature Range
0 to 40.5 ºC | 32 to 105 ºF
Specifications Drift
<2% full scale per 8 hours of continuous operation
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
±1% full scale, ±2% of full scale combustibles
Specifications Method Of Detection
Catalytic oxidation detector for combustibles. Expected life is 3-4 years for each | Customer replaceable electrochemical O2 sensor
Specifications Output Options
4-20mA
Specifications Power
12V battery operation. 115VAC 60Hz for recharging (220VAC 50Hz available)
Specifications Ranges Available
0-1800°F or 0-1000°C stack temperature | 0-25.0% O2 | 0-5.0% or 0-10.0% combustibles
Specifications Resolution
0.1% O2 and combustibles
Specifications Response Time
5-8 seconds for O2; 20-30 seconds for combustibles
Specifications Size Weight
approx. 26 x 18 x 13 cm @ 3.4 kg (10" x 7" x 5" @ 7.5lbs)
Unique Applications 0
The 350 Series is not intended for detecting these gases in ambient atmospheres for personnel safety purposes. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
