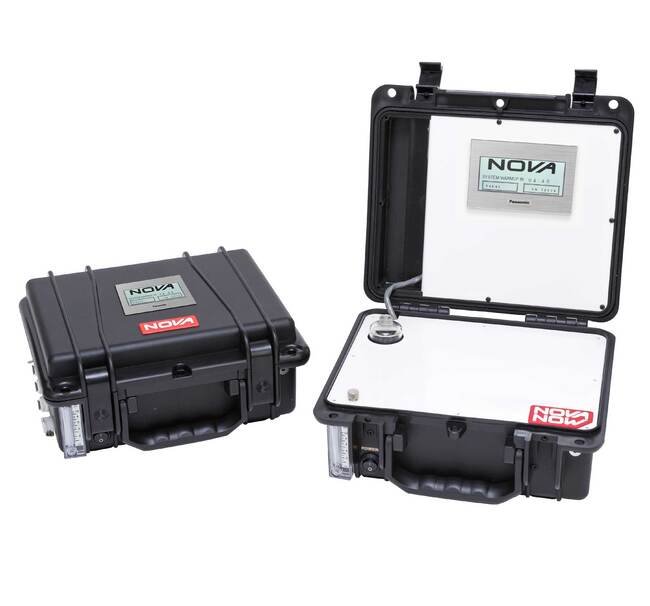

Portable Flue Gas Analyzer for Oxygen, Suitcase (K) Enclosure
Portable Flue Gas Analyzer for Oxygen, Suitcase (K) Enclosure
SKU:BYP-096688
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Portable Flue Gas Analyzer for Oxygen, Suitcase (K) Enclosure
$49.99
Quantity: 1
Claim Your Seller Account
Portable Flue Gas Analyzer for Oxygen, Suitcase (K) Enclosure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova 320 Series of Portable Flue Gas Oxygen Analyzers utilize a reliable, stable oxygen sensor which responds quickly to the oxygen present in a flue gas sample. Its life expectancy is between 3 and 4 years. The sensor is very easy for the customer to replace and at a reasonable cost.A rechargeable battery provides enough power for the pump and electronics for about 8 hours of operation. The analyzer can still be operated while it is being charged. The analyzer is supplied with recharger and a 12ft (4m) sample hose and a stainless steel probe.The Model 320 can optionally indicate stack temperature (Model 320T; 0-1800°F or 0-1000°C) for doing fuel efficiency calculations. The temperature sensor is built into the sampling probe. Efficiency charts for each fuel are provided.
Product Specifications
Applications 0
Analysis of oxygen (O 2 ) in flue gases from any type of fuel. For checking combustion efficiency, air infiltration and burner & control performance of furnaces, heaters and boilers. May be used in commercial, industrial and residential settings.
Calibration 0
On air for span On nitrogen for zero
Features 0
Rugged design that is easy to operate and maintain Fast warm-up and response Long-life electrochemical oxygen sensor (3-4 year life) Digital readout meter Rechargeable battery operation Built in sample pump, filter and flow meter Continuous condensate removal For use on any fuel Suitcase cabinet (K) weatherproof when closed Stainless steel probe with sample hose Pays for itself in months through fuel savings
Options 0
Output - 4-20mA Special sampling probes Sample pre-cooler Suitcase (K) style cabinet available On-board data-logging to USB stick
Specifications Accuracy Repeatability
±1% of full scale (±2% of full scale above 30% O2)
Specifications Ambient Temperature Range
0 to 40 ºC | 32 to 105 ºF
Specifications Drift
< 2% of full scale for 8 hours of operation
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
±1% of full scale
Specifications Method Of Detection
Long life electrochemical oxygen sensor
Specifications Output Options
4-20mA
Specifications Power
12V battery operation. 115VAC 60Hz for recharging (220VAC 50Hz available)
Specifications Ranges Available
0-5.0%, 0-10.0%, 0-25.0%, 0-50.0%
Specifications Resolution
0.1% O2
Specifications Response Time T 90
8-10 seconds for 90% of step change
Specifications Size Weight
approx. 26 x 18 x 13 cm @ 3.4 kg (10" x 7" x 5" @ 7.5lbs)
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
