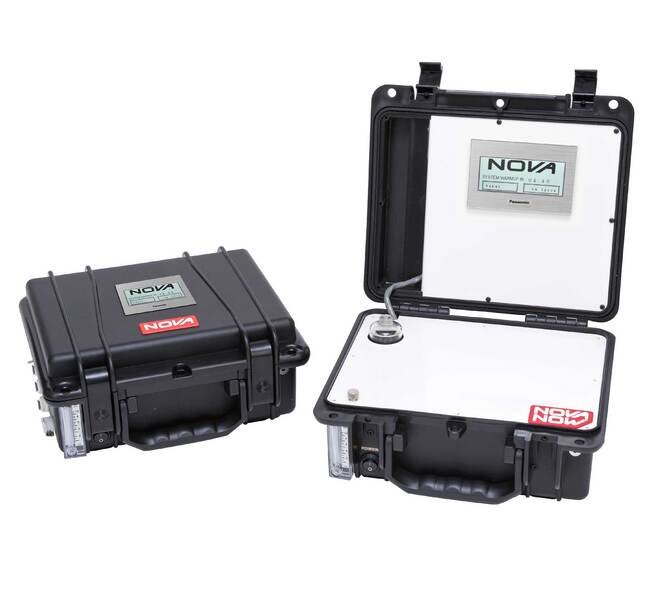

Portable Multigas Ambient Air Analyzer - 600 Series
Portable Multigas Ambient Air Analyzer - 600 Series
SKU:BYI-66150c
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Portable Multigas Ambient Air Analyzer - 600 Series
$49.99
Quantity: 1
Claim Your Seller Account
Portable Multigas Ambient Air Analyzer - 600 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
For ambient air or confined space monitoring for up to any four choices of O2, CO2, NO, NO2, CO, LEL combustibles, temperature, and % RH. Single gas versions are also available for H2S, SO2, Cl2, HCL & NH3.
Product Specifications
Applications 0
For ambient air or confined space monitoring for up to any four choices of O2, CO2, NO, NO2, CO, LEL combustibles, temperature, and % RH. Single gas versions are also available for H2S, SO2, Cl2, HCL & NH3.
Calibration 0
Nitrogen (N2) for zero Analyzed gas cylinders for span
Features 0
Rugged design that is easy to operate and maintain Fast warm-up and response Separate electrochemical sensor for each gas Sensitive infrared detector for CO2 Catalytic sensor for LEL combustibles Capacitive polymer sensor for % RH Digital meter readout with backlight Built-in sampling pump, flow meter, filter and 12 ft. sampling hose Rechargeable battery Rugged suitcase (K) style case
Options 0
Audible and visual alarms Built-in printer Built-in data logging
Specifications Accuracy Repeatability
±2% of full scale
Specifications Alarms
Optional audible & visual alarms
Specifications Ambient Temperature Range
40° to 120°F (4° to 49°C) ºC
Specifications Drift
Less than 1% of full scale or 2 PPM per 8 hours, whichever is greater, with constant ambient temperature
Specifications Gases Measured
0) NH3 - 0-20 PPM | 1) O2 - 0-25.0% | 2) CO - 0-200 PPM | 3) CO2 - 0-5000 PPM | 4) LEL Combustibles | 5) H2S - 0-20 PPM | 6) SO2 - 0-50 PPM | 7) NO - 0-100 PPM | 8) NO2 - 0-20 PPM | 9) Cl2 - 0-20 PPM
Specifications Linearity
Better than ±2% of full scale
Specifications Method Of Detection
O2, CO, SO2, NO, NO2, HCL, CL2, NH3 and H2S by electrochemical sensor, % RH by capacitive polymer, CO2 by infrared sensor, LEL by catalytic sensor
Specifications Output Options
4-20 mA
Specifications Power
115 VAC, 60 Hz for recharging | 220 VAC, 50 Hz
Specifications Ranges Available
0-100 PPM NO | 0-100% RH | 0-20 PPM Cl2 | 0-20 PPM H2S | 0-20 PPM NH3 | 0-20 PPM NO2 | 0-200 PPM CO | 0-200 PPM H2 | 0-25.0% O2 | 0-50 PPM SO2 | 0-50°C Temp. | 0-5000 PPM CO2
Specifications Resolution
0.1% on % O2, 1 PPM on PPM gases
Specifications Response Time T 90
Varies with individual sensor but generally under 2 minutes for full reading
Specifications Size Weight
15" W x 7" H x 12" D @ 14 lbs. (375 x 175 x 305 mm @ 6.4 kg)
Unique Applications 0
The Nova 600 Series is intended as a breathing air monitor, and is not marketed as an analytical instrument such as might be used in environmental applications and laboratories. Warmup time is approximately four minutes. The operating humidity range for this series of analyzers is 0-90% RH non-condensing.
