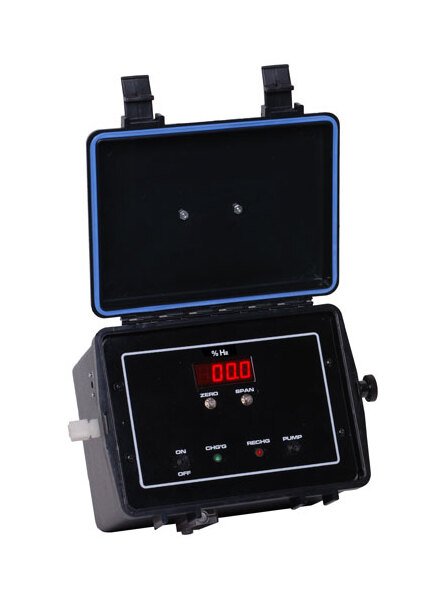

Portable Process Analyzer for Hydrogen, Suitcase (K) Enclosure
Portable Process Analyzer for Hydrogen, Suitcase (K) Enclosure
SKU:BYP-bc9060
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Portable Process Analyzer for Hydrogen, Suitcase (K) Enclosure
$49.99
Quantity: 1
Claim Your Seller Account
Portable Process Analyzer for Hydrogen, Suitcase (K) Enclosure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova 335 Portable Analyzer has been designed for the detection of hydrogen (H2) in a binary (two gas) mixture such as H2 in N2. However, it can be used in some other applications with several background gases present. Consult Nova on these applications.The thermal conductivity (T/C) cell provides a fast and accurate measurement of H2. It has an expected life of over 10 years unless contaminated.In operation, a built in sample pump draws in the gas sample through the sample tube, filter and flow meter and then on to the T/C cell. The detected H2 is displayed on a digital display.A rechargeable battery provides enough power for approximately 8 hours of operation and the analyzer can be used while it is being recharged. The recharger is included.
Product Specifications
Applications 0
For analysis of hydrogen (H 2 ) in a binary gas mixture in process gases such as H 2 in air, H 2 in nitrogen (N 2 ), H 2 in carbon dioxide (CO 2 ), H 2 in argon (Ar), H 2 in oxygen (O 2 ), etc.
Calibration 0
Ambient air for zero Gas cylinder of known H2 for span
Features 0
Rugged design that is easy to operate Fast warm up and response Long life thermal conductivity cell that provides accurate and stable readings Digital meter readout with backlight Modular layout that is easy to maintain Rechargeable battery operated Built in sample pump or flow regulator Suitcase cabinet (K) weather-proof when closed
Options 0
Recorder outputs - 4-20mA Sample pre-cooler for hot samples Condensate removal for wet applications Suitcase (K) style cabinet available On-board data-loggin to USB stick
Specifications Accuracy Repeatability
±2% of full scale
Specifications Ambient Temperature Range
12 to 50 ºC | 55 to 120 ºF
Specifications Drift
±1% of full scale max. per day (after calibration)
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
±2% of F.S.
Specifications Method Of Detection
Temperature compensated thermal conductivity (T/C) cell
Specifications Output Options
4-20 mA
Specifications Power
115 VAC / 60 Hz for recharging (220 VAC / 50 Hz also available)
Specifications Ranges Available
0-100% H2 in a binary gas mixture
Specifications Resolution
0.1% of H2
Specifications Response Time T 90
10-15 seconds to 90% step change - not including sample transport time
Specifications Size Weight
K style - approx. 35.5L x 15.2H x 26.6D cm @ 5.5 kg (14" x 6" x 10½" @ 8 lbs)
Unique Applications 0
The Nova T/C cell will respond in the presence of many gases and may need to be compensated either directly in the analyzer or in the calibration gas. Consult Nova on these types of applications. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
