Portable Strain/Bridge/LVDT Data Acquisition System
Portable Strain/Bridge/LVDT Data Acquisition System
SKU:TUR-4324e8
High-performance portable data acquisition system with 16-bit digitizer, bridge completion, and PI660 software for real-time data display.
Regular price
$4,599.99
Regular price
Sale price
$4,599.99
Unit price
per
Initiate Order
Portable Strain/Bridge/LVDT Data Acquisition System
$4,599.99
Quantity: 1
Claim Your Seller Account
Portable Strain/Bridge/LVDT Data Acquisition System
$4,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

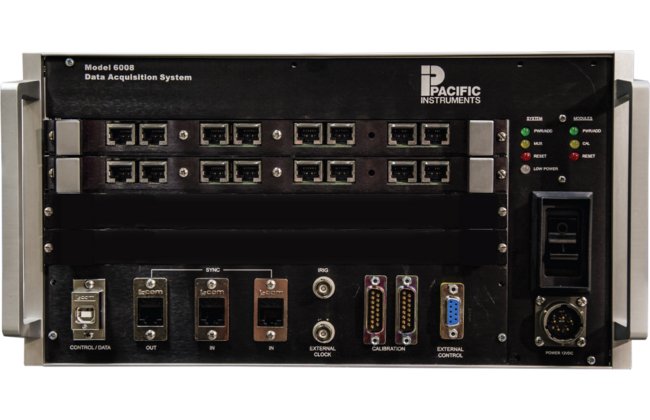

The Portable Strain/Bridge/LVDT Data Acquisition System is a high-performance measurement solution for mobile applications. With 8, 16, 24, or 32 channels and a 16-bit digitizer, this turnkey system offers precise data collection capabilities. It features bridge completion, lowpass filters, remote sense, and shunt calibration for accurate readings. Equipped with PI660 software, this system allows for easy setup, control, and real-time data display on a Windows-based Operator Workstation. Expandable and customizable, it provides digital outputs based on programmable alarm conditions, making it versatile for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
5 kHz for gains <1,000 and 1 kHz for gains 1,000 and higher.
Amplifier Common Mode
80 dB plus gain in dB up to 110 dB, DC to 60 Hz for ±10 Volts.
Amplifier Gain
Programmable from 1 to 5,000 in 1, 2, 3, 5 steps with ±0.05% accuracy.
Amplifier Gain Stability
±0.01%, ±0.004%/ºC.
Amplifier Linearity Amplifier
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and higher.
Amplifier Noise 10 Hz
0.1 µV rms RTI, 0.5 mV rms RTO.
Amplifier Noise 1 Khz
1.0 µV rms RTI, 0.5 mV rms RTO
Amplifier Recovery
120 µS to ±0.1% for 10X overload to ±10 V.
Amplifier Slew Rate
3.2 V/µS
Amplifier Source Current
±10 nA, ±1 nA/ºC.
Amplifier Zero Amplifier
Automatic to ±1 µV RTI, ±0.5 mV RTO.
Amplifier Zero Stability
±5 µV RTI, ±1 mV RTO, ±1 µV/ºC RTI, ±0.2 mV/ºC RTO. Short term: ±2 µV RTI, ±0.4 mV RTO for 8 hours.
Calibration Shunt
Two step Bipolar shunt, 0.5024 mV/V and 0.245 mV/V for 350 Ohm bridge, ±0.1%. For a 120 Ohm bridge, steps are 0.17235 mV/V and 0.08402 mV/V, ±0.1%.
Calibration Voltage Substitution
Alternate input for external calibration source. Programmable attenuator with steps of 1, 0.1 and 0.01, ±0.02% accuracy. Output of the attenuator is provided for verification.
Calibration Zero Calibration
Amplifier input disconnected and shorted.
Connections Calibration
15-Pin Type D mounted on rear panel. Mating connector supplied.
Connections Control
15-Pin Type D mounted on rear panel. Mating connector supplied.
Connections Synchronization
Sampling clock synchronization for multiple rack systems. RJ45 connector on controller board. Category 5, 2-meter cable supplied.
Connections Usb
2-meter cable supplied.
Data Format Data Word
16 or 32-bits, 2's complement binary
Data Format Sample Rates
Multiple sample rates consisting of the highest sample rate divided by binary numbers. Highest sample rate is programmable with 1 uS resolution
Data Format Scan Table
Maximum format length is 65,536 samples
Data Interface Clock Stability
100 ppm over temperature range
Data Interface Latency
Processor and scan table dependent, typically less than 5 milliseconds
Data Interface Output Rate
Processor dependent, typically over 5 million 16-bit samples/second
Excitationtransducer Power Current
50 mA limited to 70 mA.
Excitationtransducer Power Monitor
Calibration mode measures excitation voltage with ±0.05% accuracy.
Excitationtransducer Power Regulation
±0.01% for ±10% line and no-load to full-load using remote sensing.
Excitationtransducer Power Stability
±0.01%, ±0.005 %/ºC
Excitationtransducer Power Transducer Power
±12 or ±15 Volts (24 V optional) jumper selectable per channel. Transducer power available on separate pins from voltage excitation. Current is 50 mA per channel, limited to 200 mA maximum per card.
Excitationtransducer Power Voltage Excitation
Programmable per channel from 0-12 Volts in 1 Volt ±0.1% steps, or adjustable with 3.3 mV resolution.
Excitationtransducer Power Voltage Excitation Noise
200 µV peak-to-peak
Mechanical Depth
16.7 in
Mechanical Height
10.5 in
Mechanical Power Input
10 to 20 VDC. (21 to 32 VDC available on special order)
Mechanical Width
13.4 in
Operators Workstation Pccowu Lt Optional Power
115 or 230 VAC, 47 to 63 Hz.
Operators Workstation Pccowu Lt Optional Size
Laptop (other configurations available)
Overview Analog Bandwidth
1 kHz
Overview Excitationtransducer Power
+/-12V | +/-15V | Voltage
