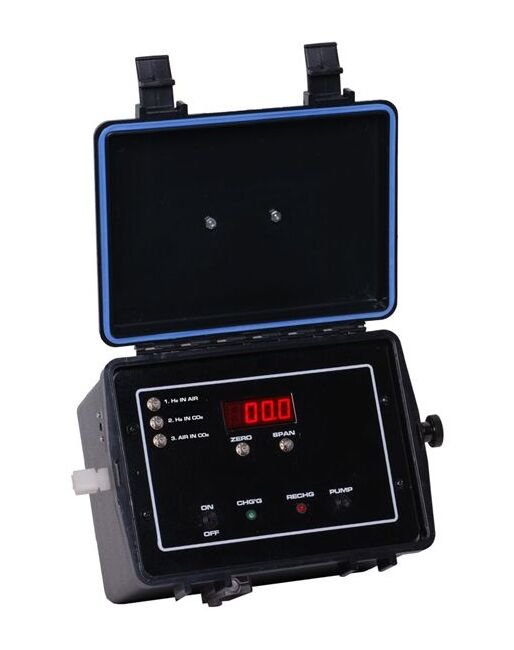

The Nova 380 Series Tri-Gas Analyzer is designed for monitoring H2 purity inside a power generator and to monitor the purging procedure during a generator shut down or start up. The analyzer contains a temperature compensated thermal conductivity (T/C) cell, amplifier board, digital readout, range switch, pressure regulator, gas flow control valve, pump and a flow indictor. A 4-20mA recorder output follows the active reading. The T/C cell does not burn the sample nor is it consumed in any way, so it has a life expectancy of over 10 years. Measurement results are fast and accurate. A rechargeable battery provides power for about 8 hours of operation, and the analyzer can be used while it is being recharged.
Product Specifications
Applications 0
For checking purity of hydrogen (H2) in H2-cooled generators and synchronous converters. The Model 380 Series will also monitor the safe purging of H2 during shut down.
Calibration 0
Range 1 : Air for Zero, 100% H2 for Span Range 2 : 100% CO2 for Zero, 100% H2 for Span Range 3 : 100% CO2 for Zero, Air for Span.
Features 0
Rugged design that is easy to operate Fast warm up and response Monitors 0-100% H2 in air, 0-100% H2 in CO2, 0-100% Air in CO2 Rugged long life thermal conductivity cell Digital readout meter Rechargeable battery operation Modular layout that is easy to maintain Built in flow meter, flow control valve and pump Built in pressure regulator prevents over pressuring of pump and sensor Suitcase style cabinet (K) is weatherproof when closed Sample pressure ranges 0.5 PSI to 125 PSI
Options 0

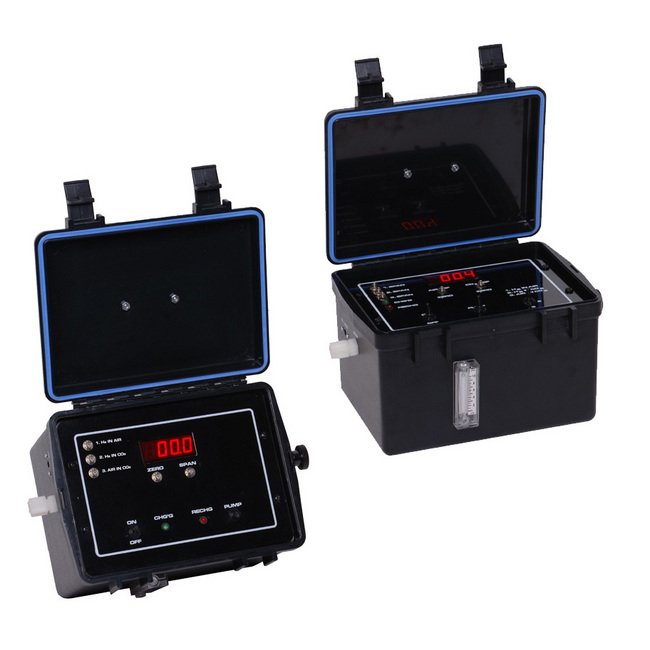

Recorder output - 4-20mA Suitcase (K) style cabinet available
Specifications Accuracy Repeatability
Range 1: ± 1% of Full Scale; Range 2: ± 2% of F.S.; Range 3: ± 2% of F.S.
Specifications Ambient Temperature Range
0 to 50 ºC | 32 to 120 ºF
Specifications Drift
H2 in Air range is ± 0.4% per week | H2 in CO2 or Air in CO2 2% F.S. per week maximum drift
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
±1.0% of F.S. on H2 in Air range. ±2% of F.S. in H2 or Air in CO2 ranges
Specifications Method Of Detection
Temperature compensated thermal conductivity (T/C) cell
Specifications Output Options
4-20mA
Specifications Power
Battery operation. 115 VAC, 60 Hz for recharging (220 VAC, 50 Hz available)
Specifications Ranges Available
Range 1 : 0-100% H2 in Air | Range 2 : 0-100% H2 in CO2 | Range 3 : 0-100% Air in CO2
Specifications Resolution
0.1% of gas measured
Specifications Response Time T 90
10-15 seconds to 90% step change - not including sample transport time
Specifications Size Weight
9 1/2" L x 7" W x 6 1/2" H @ 12 lbs (24 x 17 x 18 cm @ 3.6 kg)
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
