Positionable Male Branch Tee Fitting - 1/4in Tube OD & 15.24mm
Positionable Male Branch Tee Fitting - 1/4in Tube OD & 15.24mm
SKU:SPM-08ca5e
Enhance safety and productivity with our SPMBTI Male Branch Tee Fitting. Perfect for high-pressure and chemical environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Positionable Male Branch Tee Fitting - 1/4in Tube OD & 15.24mm
$24.99
Quantity: 1
Claim Your Seller Account
Positionable Male Branch Tee Fitting - 1/4in Tube OD & 15.24mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

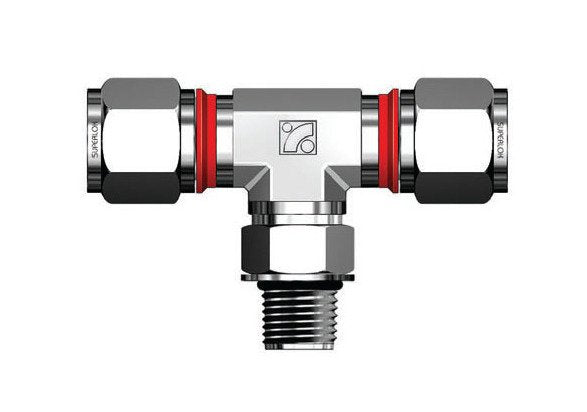

The SPMBTI Series 1/4 Inch Tube OD Male Branch Tee Fitting is a versatile solution that connects fractional tubes to SAE/MS straight thread boss fittings. Its innovative i-Fitting® design ensures a perfect compression fit, enhancing safety, productivity, and cost-efficiency. Made from high-quality materials like Alloy 625, Alloy 825, and Stainless Steel, this fitting is ideal for high-pressure and chemical environments. With dimensions designed for precision and accuracy, this fitting meets industry standards for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

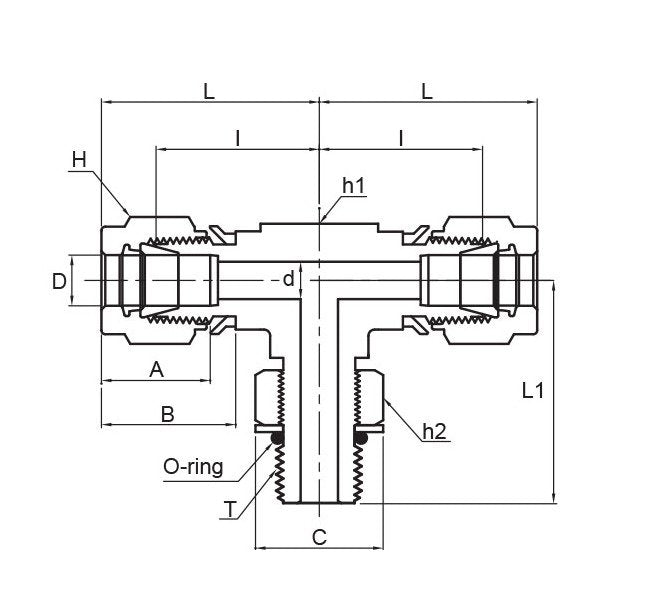

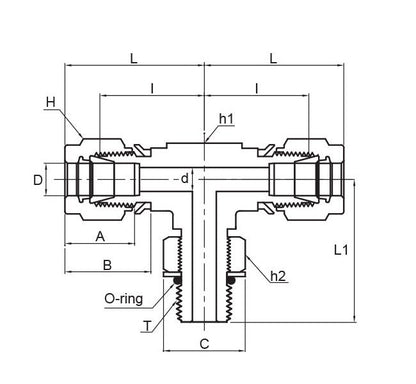

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension C
16.51 mm
Technical Specs Dimension I
21.08 mm
Technical Specs Dimension L
28.45 mm
Technical Specs Dimension L1
28.45 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.83 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
7/16-20 mm
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
Technical Specs Width Across Flat H1
1/2 in
Technical Specs Width Across Flat H2
9/16 in
