Positionable Male Branch Tee Fitting - 3/4 Inch Tube Diameter
Positionable Male Branch Tee Fitting - 3/4 Inch Tube Diameter
SKU:SPM-1a0c05
High-performance 3/4" Tube OD Male Branch Tee Fitting for secure connections in diverse applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Positionable Male Branch Tee Fitting - 3/4 Inch Tube Diameter
$39.99
Quantity: 1
Claim Your Seller Account
Positionable Male Branch Tee Fitting - 3/4 Inch Tube Diameter
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

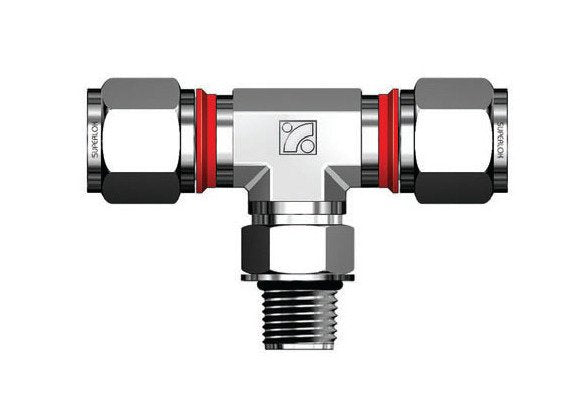

The SPMBTI Series 3/4 Inch Tube Outside Diameter Male Branch Tee Fitting is a reliable solution for connecting fractional tubes to SAE/MS straight thread bosses. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and performance in various applications. Its innovative i-Fitting® design features a built-in gap gauge for perfect compression, enhancing safety in high-pressure environments. With dimensions meeting industry standards and a patented design by BMT, this fitting offers ease of installation, improved productivity, and cost-efficiency.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

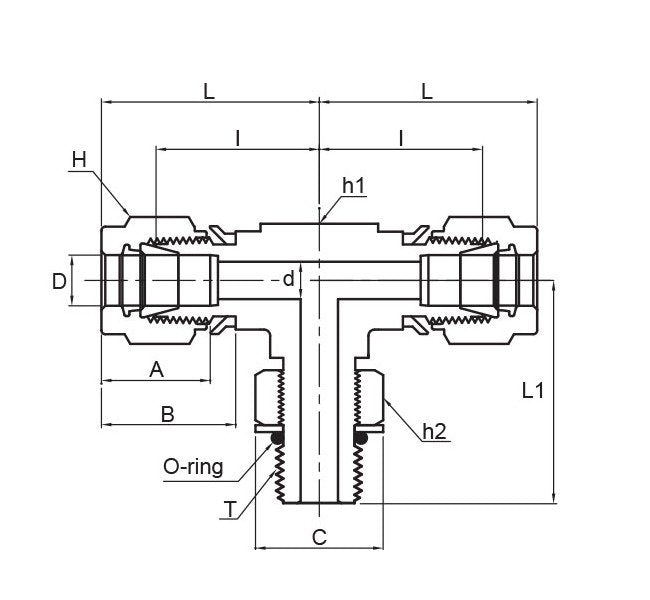

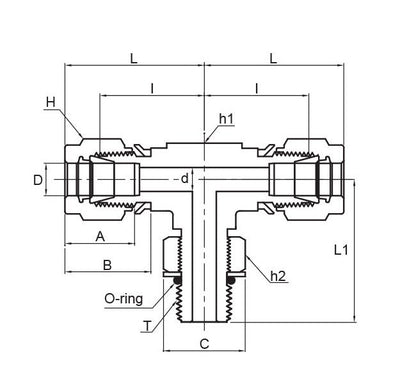

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
24.38 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension C
36.58 mm
Technical Specs Dimension I
31.24 mm
Technical Specs Dimension L
41.40 mm
Technical Specs Dimension L1
48.77 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.75 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
1-1/16-12 mm
Technical Specs Tube Outside Diameter D
3/4 in
Technical Specs Width Across Flat H
1-1/8 in
Technical Specs Width Across Flat H1
1-1/16 in
Technical Specs Width Across Flat H2
1-1/4 in
