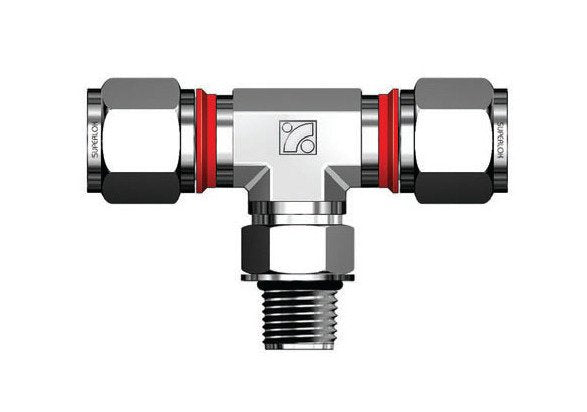

Positionable Male Branch Tee Fitting - 3/4 inch Tube OD

Name: Positionable Male Branch Tee Fitting - 3/4 inch Tube OD
Brand: Superlok-Mako Products LLC
SKU: SPM-0209d9
Price: 44.99 USD
Availability: OutOfStock

SKU:SPM-0209d9

Enhance connections with precision using the SPMBTI Series 3/4 inch Male Branch Tee Fitting, designed for efficiency and safety in high-pressure environments.

$44.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SPMBTI Series 3/4 inch Tube OD Positionable Male Branch Tee Fitting is designed to connect fractional tubes to female ISO parallel threads with precision and reliability. Crafted from high-quality materials including Alloy 625, Stainless Steel, and more, this fitting ensures durability and efficient operation. Featuring i-Fitting® components for perfect compression and enhanced safety in high-pressure environments, it optimizes productivity while reducing installation costs. With dimensions meeting industry standards, this fitting offers a dependable solution for valve connections.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

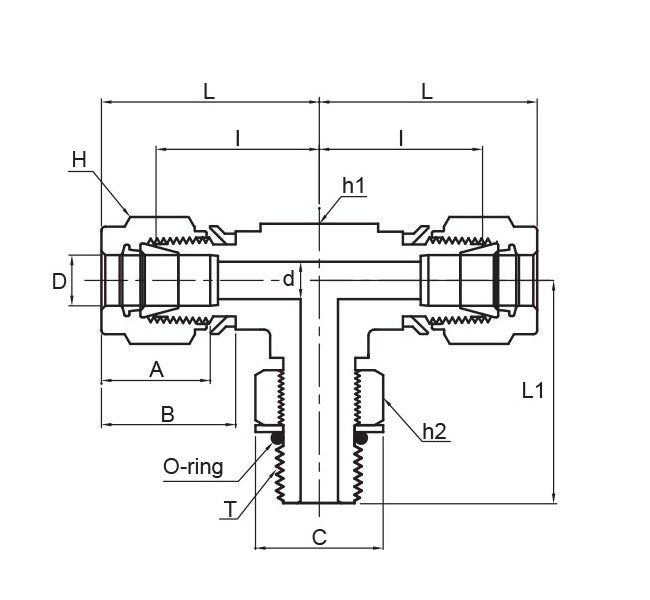

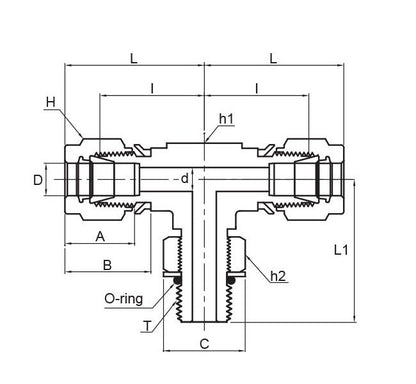

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Female

Technical Specs Dimension A

24.38 mm

Technical Specs Dimension B

21.84 mm

Technical Specs Dimension C

41.15 mm

Technical Specs Dimension I

29.72 mm

Technical Specs Dimension L

39.88 mm

Technical Specs Dimension L1

48.77 mm

Technical Specs Dimension T Pf

3/4 in

Technical Specs Material

Technical Specs Minimum Dimension D

15.75 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Tube Outside Diameter D

3/4 in

Technical Specs Width Across Flat H

1-1/8 in

Technical Specs Width Across Flat H1

1-1/16 in

Technical Specs Width Across Flat H2

1-3/8 in
