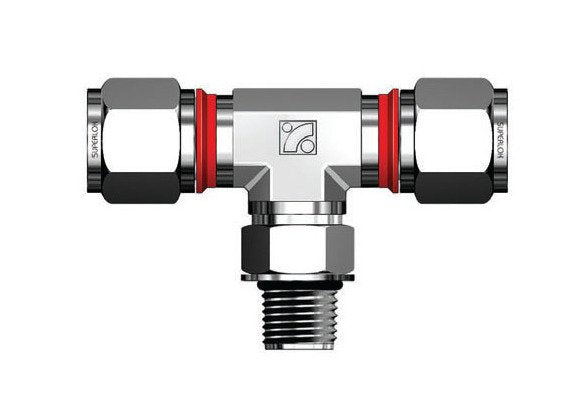

Positionable Male Branch Tee Fitting - 3/8 inch Tube OD, 16.76mm Dimension A

Name: Positionable Male Branch Tee Fitting - 3/8 inch Tube OD, 16.76mm Dimension A
Brand: Superlok-Mako Products LLC
SKU: SPM-3393c3
Price: 29.99 USD
Availability: OutOfStock

SKU:SPM-3393c3

Enhance plumbing connections with the SPMBTI Series Male Branch Tee Fitting for secure, reliable performance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your plumbing systems with the SPMBTI Series Positionable Male Branch Tee Fitting. This fitting connects fractional tubes to SAE/MS straight thread bosses, ensuring secure and reliable connections. Crafted from a range of durable materials including Alloy 625, Stainless Steel, and more, it offers superior strength and corrosion resistance. The i-Fitting components feature a patented design by BMT, enhancing productivity, safety, and cost-effectiveness. With a built-in check ring acting as a gap gauge, over- and under-tightening issues are a thing of the past. Experience industry-leading performance and reliability with this revolutionary fitting.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

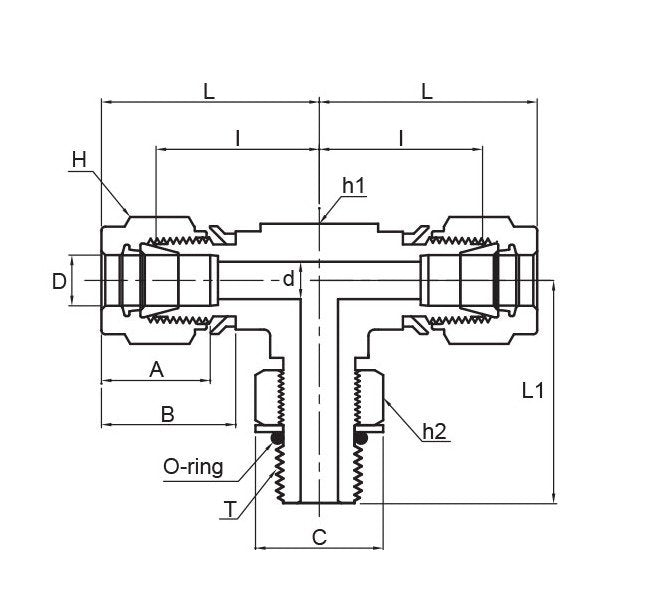

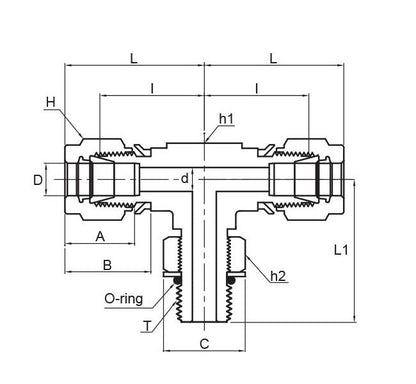

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Female

Technical Specs Dimension A

16.76 mm

Technical Specs Dimension B

19.30 mm

Technical Specs Dimension C

20.07 mm

Technical Specs Dimension I

24.64 mm

Technical Specs Dimension L

32.00 mm

Technical Specs Dimension L1

32.26 mm

Technical Specs Material

Technical Specs Minimum Dimension D

7.11 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Straight Thread T U

9/16-18 mm

Technical Specs Tube Outside Diameter D

3/8 in

Technical Specs Width Across Flat H

11/16 in

Technical Specs Width Across Flat H1

5/8 in

Technical Specs Width Across Flat H2

11/16 in
