Power Control Transformers
Power Control Transformers
SKU:POW-69691e
Versatile Chassis Mount Power Control Transformers for electronic and electromagnetic applications. Primary AC: 115V | 230V. Secondary AC: 48.0V at 1.0A | 24.0V at 2.0A. Reliable and compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Power Control Transformers
$59.99
Quantity: 1
Claim Your Seller Account
Power Control Transformers
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

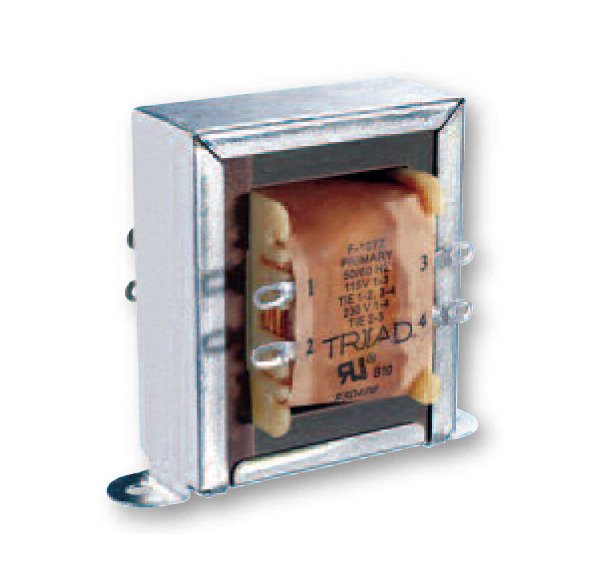

Our Chassis Mount Power Control Transformers by Triad are ideal for electronic, electromagnetic, and electrical control applications. With primary AC voltages of 115V or 230V, and secondary voltages of 48.0V at 1.0A or 24.0V at 2.0A, these transformers are versatile and reliable. Featuring a Center Tap contact type, Z case type, and hi-pot tested at 1,500 VRMS, they meet stringent industry standards for safety and performance.
Product Specifications
Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
Z
Specifications Connections
Lugs

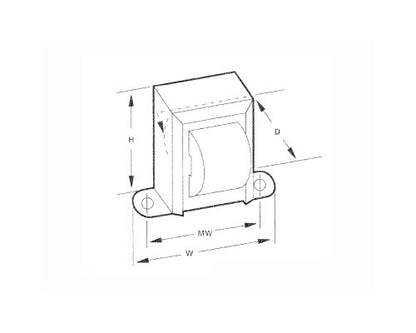

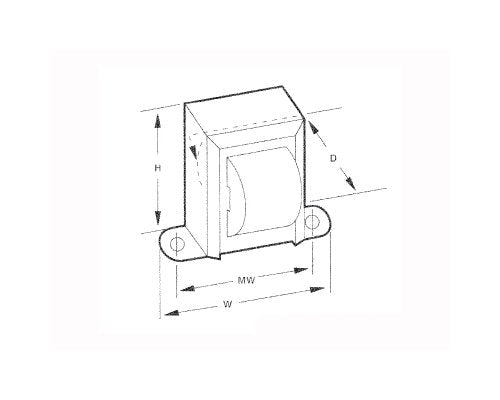

Specifications Depth D
2 3/8 in
Specifications Electrical Rating
48 V·A
Specifications Height H
3 1/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
3 1/8 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
24.0 V at 2.0 A
Specifications Secondary Voltage In Series Ac
48.0 V at 1.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.30 lb
Specifications Width W
3 5/8 in
Technical Notes Technical Notes

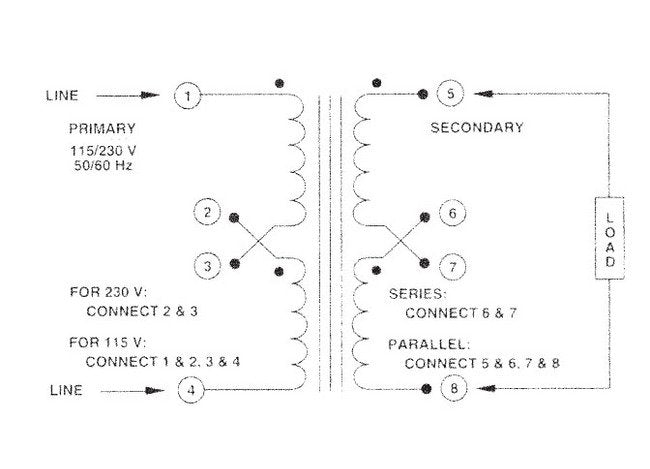

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
