Power Feed Clamp with PVC Case
Power Feed Clamp with PVC Case
SKU:CRA-6605cf
Powerfully connect incoming power to conductor rails with ease. Copper clamp and PVC case for durability and easy installation.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Power Feed Clamp with PVC Case
$34.99
Quantity: 1
Claim Your Seller Account
Power Feed Clamp with PVC Case
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

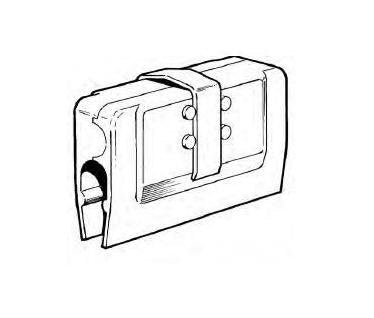

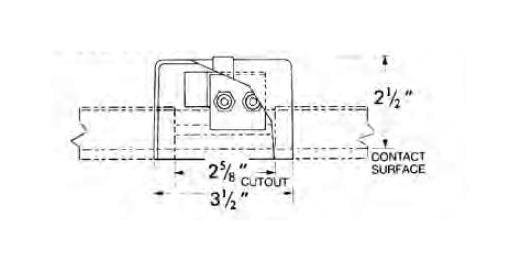

The Power Feed Clamp with PVC Case is an essential component for attaching incoming power to conductor rails in crane control systems. Its copper clamp and PVC case construction ensure optimal conductivity and durability. With feed wires ranging from #8 to 1/0, this power feed can handle high amperage loads of up to 250 A. The fully insulated design and simple clamp mechanism allow for easy and secure installation anywhere on the system. Moreover, its copper material and maximum temperature rating of 160°F make it suitable for demanding industrial environments, providing reliable power distribution. This product is designed to meet the stringent requirements of institutional and government buyers, ensuring compliance with industry standards.
Product Specifications
Specifications Amperage Rating
250 A
Specifications Description
copper clamp and PVC case with feed wires of #8;-1/0
Specifications Material
Copper
Specifications Maximum Temperature
160 ºF
Specifications Weight
.66 lb
