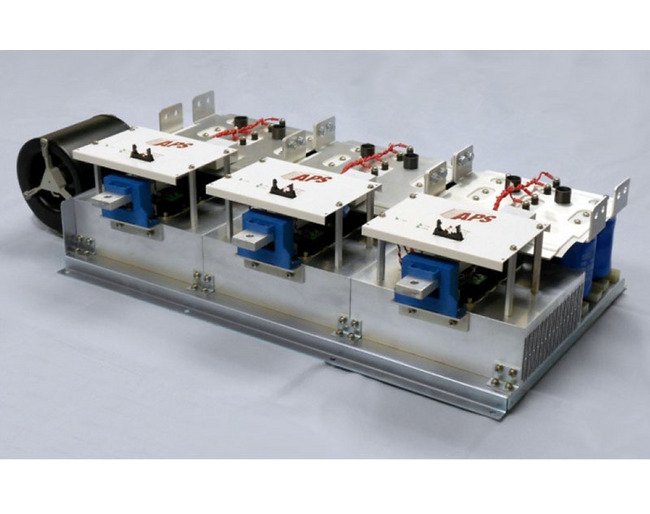

Power Surge 1200V IGBT Inverter Assembly
Power Surge 1200V IGBT Inverter Assembly
SKU:POW-7aed7f
Versatile IGBT inverter with high-frequency operation, integrated cooling, and real-time protection features for optimal performance.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
Power Surge 1200V IGBT Inverter Assembly
$1,799.99
Quantity: 1
Claim Your Seller Account
Power Surge 1200V IGBT Inverter Assembly
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

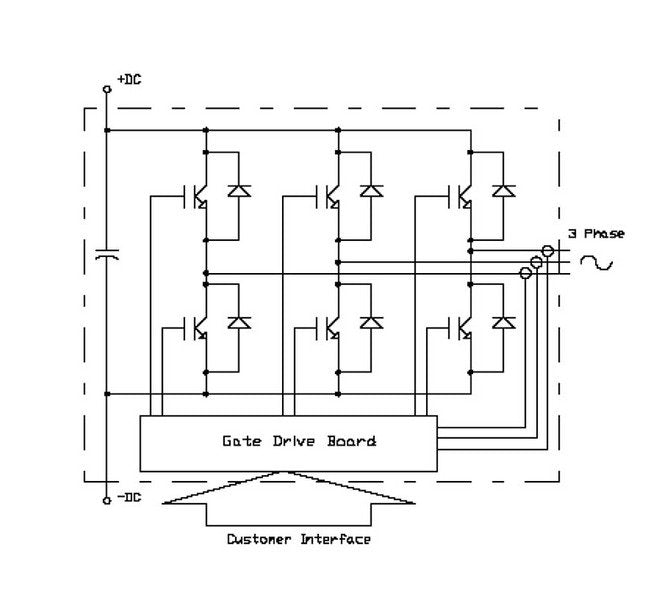

The Power Surge 1200V IGBT Inverter Assembly by Applied Power Systems is a versatile and compact solution with a wide range of applications including motor controls, SMPS, and welders. Operating at frequencies up to 20kHz, this three-phase bridge inverter features a low inductance laminated bus structure, isolated gate drive interfaces, and real-time protection mechanisms for fail-safe operation. With integrated cooling, temperature sensors, and multiple safety features, this Power Surge stack offers superior short circuit protection and shoot-through prevention. It is designed for TAA compliance and can be configured to meet various government and institutional procurement standards.
Product Specifications
Additional Information Additional Information
The IAP900T120H PowerStack provides built in protection features including: OverVoltage, UnderVoltage lockout, OverCurrent, OverTemperature, short circuit and optional airflow or liquid flow indicators. Flexibility is a key feature of the IAP900T120H PowerStacks. Options include: a choice of converter front ends, rectifier, half or full SCR control, with or without SCR gate firing boards and soft. soft-start circuitry. A choice of cooling methods, forced air or liquid is also available. Customer provided PWM is optically coupled or a fiber optic link can be provided to the IGBT interface. Current feedback is provided by Hall effect current transducers.The IAP900T120H PowerStack is rated up to 800 VDC, switching frequencies up to 20kHz, includes many safety features to protect the IGBTs and output circuitry and can be configured to meet your application.
Compact Size Depth
17.64 in
Compact Size Height
8.50 in
Compact Size Width
30.0 in
Features Features
Isolated gate drive board with fault monitoring and protectionIsolated analog feedback of phase current, DC bus voltage, and operating temperatureLow inductance laminated bus and Cap BankIntegrated cooling with temperature sensors and feedbackReal-Time Protection provides fail-safe operation and isolated fault annunciationSystem status / troubleshooting LEDsSuperior short circuit protection and shoot-through prevention
Gate Drive Board Electrical Characteristics Maximum Overtemperat
97 ºC
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Overtemperat
93 ºC
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
1250 A
Gate Drive Board Electrical Characteristics Overtemperat
95 ºC
Gate Drive Board Electrical Characteristics Overvoltage
900 V
Gate Drive Board Electrical Characteristics Pulse Width
0 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
Gate Drive Board Fault Output Current
50 mA
Gate Drive Board Fault Output Supply Voltage
30 V
Gate Drive Board Pulse Width Modulation Pwm Signal Input Voltage
20 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
4000 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
- 40 to +150 ºC
General Operating Temperature Top
-25 to +85 ºC
General Storage Temperature Tstg
- 40 to +125 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
800 V
Insulated Gate Bipolar Transistor Igbt Inverter Collector Curren
900 A
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
200 ns
Technical Specs Brands
Applied Power Systems, Inc.
