Powerful Small Rectangular Electromagnet
Powerful Small Rectangular Electromagnet
SKU:SMA-89dbf0
Compact & powerful electromagnet with 450 lb pull capacity, ideal for manual & automated applications. Customization options available.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Powerful Small Rectangular Electromagnet
$89.99
Quantity: 1
Claim Your Seller Account
Powerful Small Rectangular Electromagnet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

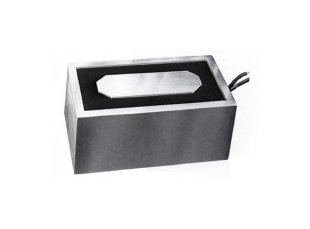

The Small Rectangular Flat Faced Electromagnet offers a compact and efficient solution ideal for applications requiring strong magnetic pull. With dimensions of 2 1/2 in x 2 1/2 in x 1 1/2 in and a pull capacity of 450 lb, this electromagnet ensures reliable performance. Suitable for both manual and automated operations, it operates at a power of 8W and comes with optional DC voltage ratings of 24V and 110V. Additionally, the included manufacturing notes highlight customization options available for specific requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.

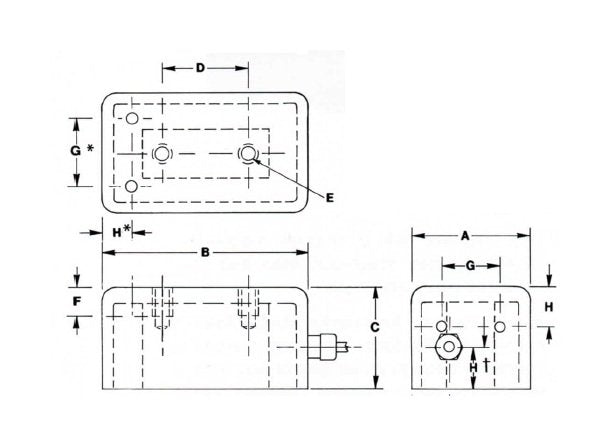

Specifications Height C
1 1/2 in
Specifications Length B
2 1/2 in
Specifications Location Of Leads G
1 3/4 in
Specifications Location Of Leads H
3/8 in
Specifications Mounting D
3/4 in
Specifications Net Weight
2 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
8 W
Specifications Pull Capacity
450 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread Depth F
1/2 in
Specifications Thread E
1/4 to 20 in
Specifications Width A
2 1/2 in
