PowerStack 1400A/1200V IGBT Inverter
PowerStack 1400A/1200V IGBT Inverter
SKU:POW-74bed4
PowerStack 1400A/1200V IGBT inverter for high-power applications, with advanced protection features and reliable performance.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
PowerStack 1400A/1200V IGBT Inverter
$2,599.99
Quantity: 1
Claim Your Seller Account
PowerStack 1400A/1200V IGBT Inverter
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

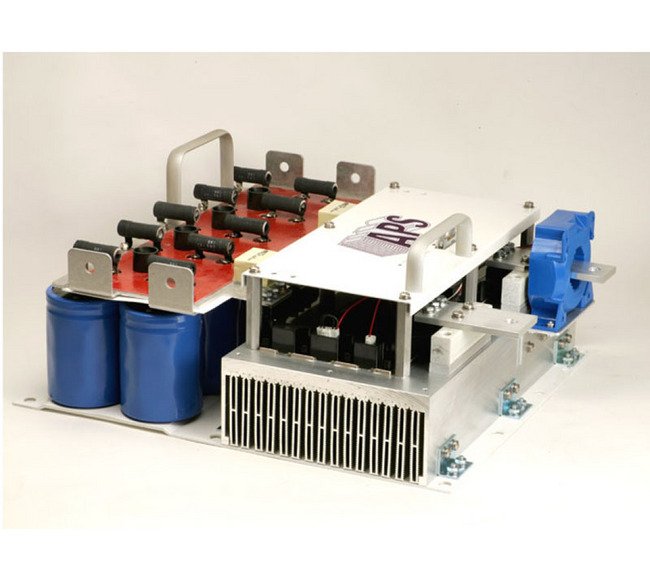

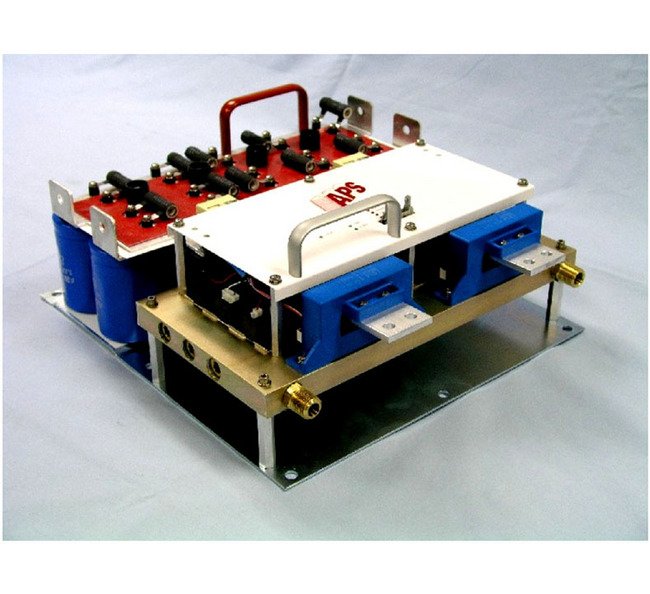

The PowerStack 1400 Ampere (A)/1200 Volt (V) Full Bridge IGBT Inverter by Applied Power Systems, Inc. is a versatile, highly integrated power assembly designed for high-power applications. It offers single or three-phase output inverter configurations, with options for forced air-cooled or liquid-cooled operation. Featuring a low inductance laminated bus structure, fiber optic gate drivers, and isolated power supplies, this PowerStack ensures reliable performance at high switching frequencies. With built-in protections against OverCurrent, OverVoltage, OverTemperature, and Short circuit, along with superior fault protection mechanisms, this IGBT inverter provides efficient and safe operation for demanding industrial settings.
Product Specifications
Additional Information Additional Information
The IAP1400B120 PowerStack provides built in protection features including: OverVoltage. UnderVoltage lockout. OverCurrent. OverTemperature. short circuit and optional airflow or liquid flow indicators. Customer provided PWM is optically coupled or a fiber optic link can be provided to the IGBT interface. Current feedback is provided by Hall Effect current transducers.
Compact Size Depth
18.6 in
Compact Size Height
9.00 in
Compact Size Width
15.4 in
Features Features

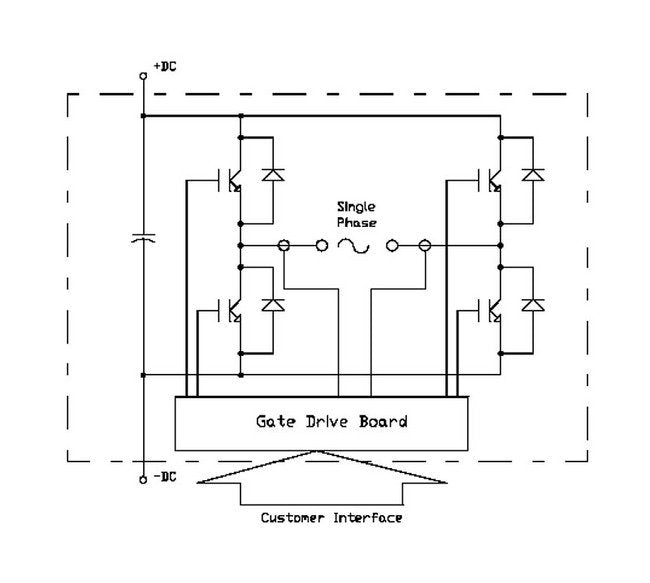

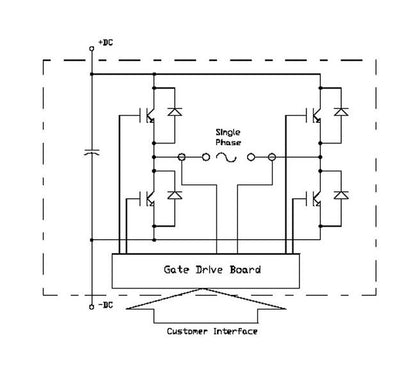

High performance IGBT inverter bridgeDC Bus Voltages to 800 VDCSnubber-less operation to 750 VDCSwitching frequencies up to 20 kHzFault Protection with status indication:OverCurrentOverVoltageOverTemperatureShort circuitPS UnderVoltageIsolated analog feedbacksLow inductance laminated busIsolated gate driver and power suppliesLiquid cooling with temperature feedbackOutput current feedbackSuperior short circuit protection and shoot through prevention
Gate Drive Board Electrical Characteristics Maximum Output Overc
2000
Gate Drive Board Electrical Characteristics Maximum Overtemperat
65 ºC
Gate Drive Board Electrical Characteristics Maximum Overvoltage
910 V
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Output Overc
1900 A
Gate Drive Board Electrical Characteristics Minimum Overtemperat
61 ºC
Gate Drive Board Electrical Characteristics Minimum Overvoltage
890 V
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
1950 A
Gate Drive Board Electrical Characteristics Overtemperat
63 ºC
Gate Drive Board Electrical Characteristics Overvoltage
900 V
Gate Drive Board Electrical Characteristics Pulse Width
0 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
Gate Drive Board Fault Signal Output Current
50 mA
Gate Drive Board Fault Signal Output Supply Voltage
30 V
Gate Drive Board Pulse Width Modulation Pwm Signal Input Voltage
20 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
2500 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
- 40 to +150 ºC
General Note For Absolute Maximum Ratings
TJ = 25 ºC unless otherwise Specified
General Operating Temperature Top
-25 to +85 ºC
General Storage Temperature Tstg
- 40 to +125 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
900 V
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
IE = 1400 A
Technical Specs Brands
Applied Power Systems, Inc.
