PowerStack 300A/1700V IGBT Inverter
PowerStack 300A/1700V IGBT Inverter
SKU:POW-fab0ea
Versatile PowerStack for high-performance applications with advanced safety features
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
PowerStack 300A/1700V IGBT Inverter
$999.99
Quantity: 1
Claim Your Seller Account
PowerStack 300A/1700V IGBT Inverter
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

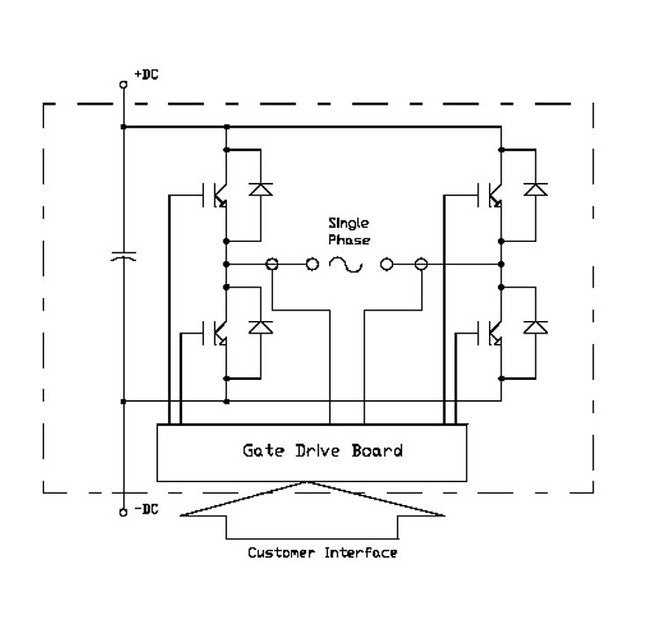

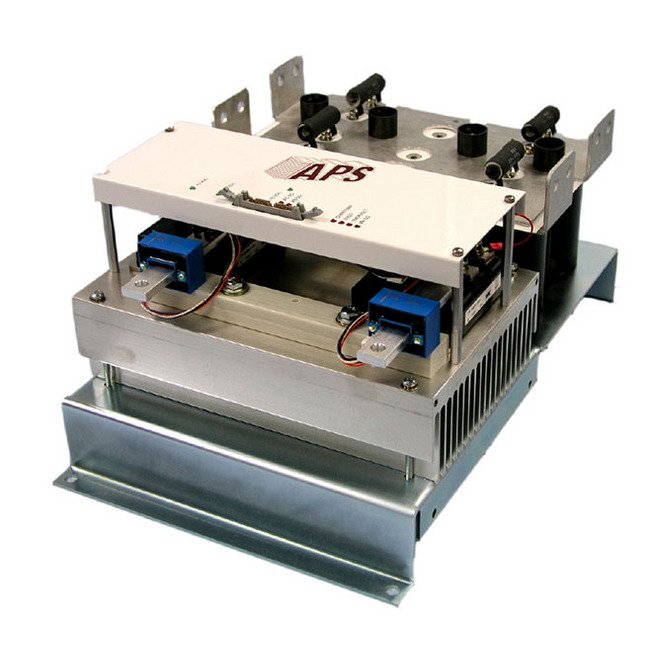

The PowerStack 300 Ampere (A)/1700 Volt (V) IGBT Inverter is a versatile power assembly ideal for motor controls, switch mode power supplies, UPS, welders, and more. It features high-frequency operation, customizable configurations, extensive safety features, and integrated cooling. With protection against over voltage, over current, over temperature, and short circuits, this PowerStack meets rigorous industry standards for reliability and performance.
Product Specifications
Additional Information Additional Information
The IAP300B170H PowerStack provides built in protection features including: over voltage, undervoltage lockout, over current, over temperature,short circuit and optional airflow or liquid flow indicators.Flexibility is a key feature of the IAP300B170H PowerStack Options include: a choice of converter front ends, rectifier, half or full SCR control, with or without SCR gate firing boards and soft-start circuitry. A choice of cooling methods, forced air or liquid is also available. Customer provided PWM is optically coupled or a fiber optic link can be provided to the IGBT interface. Current feedbacks provided by Hall effect transducers.The IAP300B170H PowerStack is rated to maximum input voltages up to 1200 VDC, switching frequencies to over 20kHz, includes many safety features to protect the IGBTs and output circuitry and can be configured to meet your application.
Compact Size Depth
13.0 in
Compact Size Height
9.00 in
Compact Size Width
13.5 in
Features Features
Multi-Function Power Assembly Protective circuitry with fail-safe opto-isolated fault annunciation, including: Over Current Over Voltage Short circuit P.S. Under Voltage Over Temperature Opto-isolated or fiber-optic gate drive and fault signal output for electrical isolation and noise immunity Integrated cooling with temperature sensors and feedback
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
300 A
Gate Drive Board Electrical Characteristics Overtemperat
95 ºC
Gate Drive Board Electrical Characteristics Overvoltage
1200 V
Gate Drive Board Electrical Characteristics Pulse Width
0 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
4000 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
- 40 to +150 ºC
General Storage Temperature Tstg
- 40 to +125 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
1200 V
Insulated Gate Bipolar Transistor Igbt Inverter Collector Curren
300 A
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
IC = 100 A | RG = 1.6 Ω | VCC = 600 V | VGE = 15 V
Technical Specs Brands
Applied Power Systems, Inc.
Technical Specs Fault Output Supply Voltage
30 V
Technical Specs Pulse Width Modulation Pwm Signal Input Voltage
20 V
