PowerStack 600A/1200V IGBT Inverter
PowerStack 600A/1200V IGBT Inverter
SKU:POW-dc577d
Explore the PowerStack 600A/1200V IGBT Inverter for efficient power conversion in diverse applications.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
PowerStack 600A/1200V IGBT Inverter
$2,599.99
Quantity: 1
Claim Your Seller Account
PowerStack 600A/1200V IGBT Inverter
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

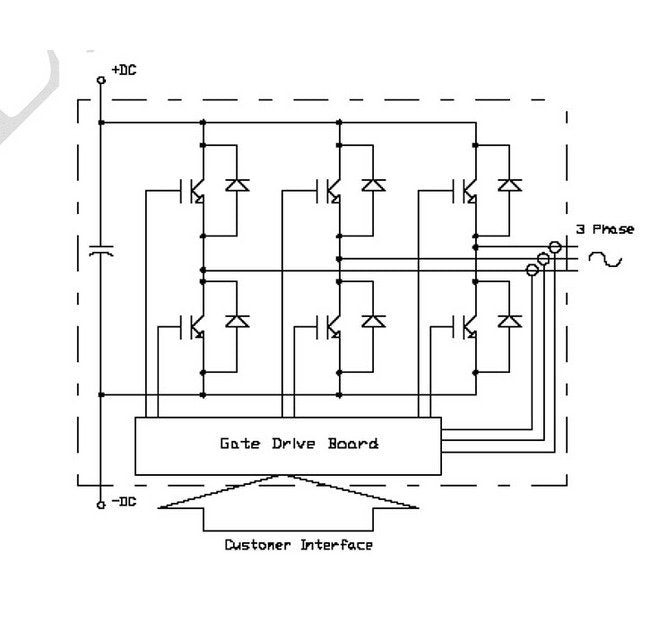

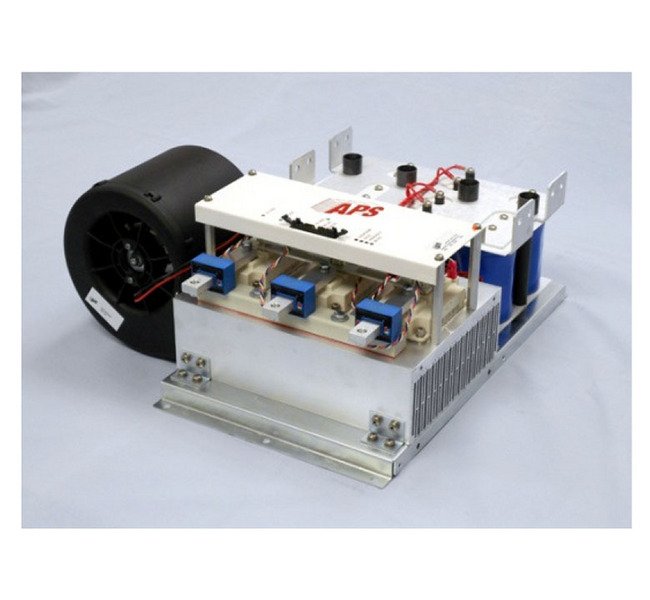

The PowerStack 600A/1200V IGBT Inverter by Applied Power Systems, Inc. is a versatile and integrated power assembly designed for various applications, including renewable energy, energy storage, UPS, and welding. Operating at frequencies up to 20kHz, this 3-phase bridge IGBT inverter features a customizable configuration with options for converter input circuitry, cooling systems, and safety features. With a robust design, the PowerStack incorporates advanced features like low inductance bus structure, optically isolated gate drive interfaces, and DC-link capacitance for high switching frequencies.
Product Specifications
Additional Information Additional Information
The IAP600T120H PowerStack protection features including: Over Voltage,Under Voltage lockout, Over Current, Over Temperature, short circuit and optional airflow or liquid flow indicators.Flexibility is a key feature of the PowerStack. Options include: a choice of converter frontends, rectifier, half or full control SCRSCR gate firing boards and soft-start circuitry. A choice of cooling methods, forced air or liquid is also available. Customer provided PWM is optically coupled or a fiber optic link can be provided to the IGBT interface. Current feedback is provided by Hall effect current transducers.The IAP600T120H PowerStack is rated to maximum input voltages up to 900 VDC, switching frequencies up to 20kHz, includes many safety features to protect the IGBTs and output circuitry and can be configured to meet your application.
Features Features
Multi-Function Power Assembly1mF Film Capacitor BankSwitching frequencies up to 20kHzBuilt-in Diagnostics with fault indicators, including: Over Current Over Voltage Short circuit P.S. Under Voltage Over TemperatureOpto-isolated or fiber-optic gate drive and fault signal output for electrical isolation and noise immunityIntegrated cooling with temperature sensors and feedback
Gate Drive Board Electrical Characteristics Maximum Overtemperat
96 ºC
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Overtemperat
92 ºC
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
900 A
Gate Drive Board Electrical Characteristics Overtemperat
94 ºC
Gate Drive Board Electrical Characteristics Overvoltage
950 V
Gate Drive Board Electrical Characteristics Pulse Width
0 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
4000 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
- 40 to +175 ºC
General Operating Temperature Top
-25 to +85 ºC
General Storage Temperature Tstg
- 40 to +125 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
1200 V
Insulated Gate Bipolar Transistor Igbt Inverter Collector Curren
600 A
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
400 ns
Technical Specs Brands
Applied Power Systems, Inc.
Technical Specs Depth
13.0 in
Technical Specs Direct Current Dc Bus Voltages
900 V
Technical Specs Fault Output Supply Voltage
30 V
Technical Specs Height
9.00 in
Technical Specs Pulse Width Modulation Pwm Signal Input Voltage
15 V
Technical Specs Regulated Power Supply 15 Volt V Voltage
18 V
Technical Specs Emitter Collector Voltage Vec
1.85 V
Technical Specs Unregulated Power Supply 24 Volt V Voltage
30 V
Technical Specs Width
14.5 in
