PowerStack IGBT Inverter Kit
PowerStack IGBT Inverter Kit
SKU:INT-dee579
Versatile PowerStack IGBT Inverter Kit for high-frequency applications with advanced safety features and compact design.
Regular price
$2,199.99
Regular price
Sale price
$2,199.99
Unit price
per
Initiate Order
PowerStack IGBT Inverter Kit
$2,199.99
Quantity: 1
Claim Your Seller Account
PowerStack IGBT Inverter Kit
$2,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

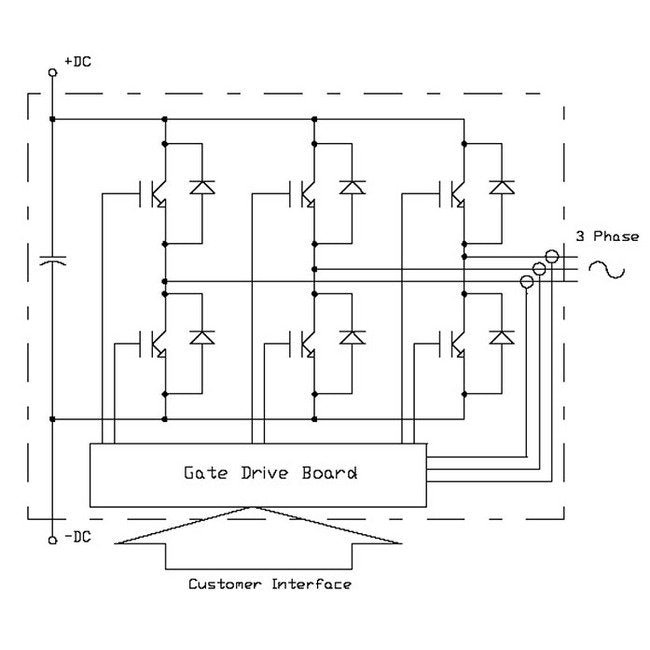

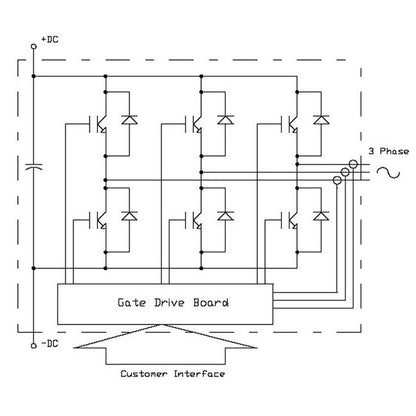

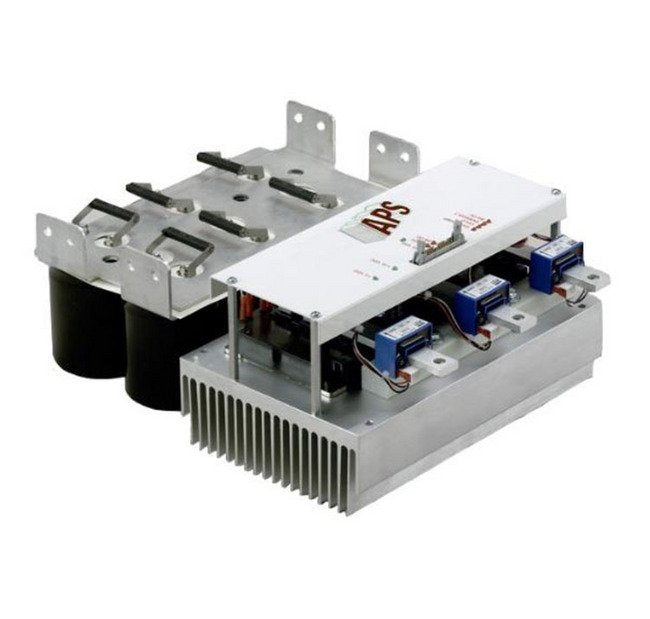

The PowerStack IGBT Inverter Kit is a versatile and integrated power assembly suitable for various applications like motor controls, UPS, renewable energy, and more. Operating at frequencies over 20kHz, this kit offers configurations for full or three-phase bridge inverters with advanced safety features. With a compact design and maximum input voltage of 800VDC, it ensures efficient performance and reliability in demanding environments.
Product Specifications
Additional Information Additional Information
The IAP100T120 PowerStack provides built in protection features including; over voltage, under voltage lockout, over current, over temperature, short circuit and optional airflow or liquid flow indicators.Flexibility is a key feature of the IAP100T120 PowerStack. Options include: a choice of converter front ends, rectifier, half or full SCR control, with or without SCR gate firing boards and soft-start circuitry. A choice of cooling methods, forced air or liquid is also available. Customer provided PWM is optically coupled or a fiber optic link can be provided to the IGBT interface. Current feedback is provided by Hall effect transducers.The IAP100T120 PowerStack is rated to maximum input voltages up to 800 VDC, switching frequencies to over 20kHz, includes many safety features to protect the IGBTs and output circuitry and can be configured to meet your application.
Compact Size Depth
11 in
Compact Size Height
8 in
Compact Size Width
17.56 in
Features Features
DC Bus Voltages to 850 VDCSnubber-less operation to 650 VDCProtective circuitry with fail-safe opto-isolated fault annunciation, including:Over CurrentOver VoltageOver TemperatureShort circuitP.S. Under VoltageOpto-isolated or fiber-optic gate drive and fault signal output for electrical isolation and noise immunityIntegrated cooling with temperature sensors and feedbackMany options - Diode/SCR Front End, etc.
Gate Drive Board Electrical Characteristics Maximum Overtemperat
82 ºC
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Overtemperat
78 ºC
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
150 A
Gate Drive Board Electrical Characteristics Overtemperat
80 ºC
Gate Drive Board Electrical Characteristics Overvoltage
900 V
Gate Drive Board Electrical Characteristics Pulse Width
15 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
Gate Drive Board Fault Output Current
50 mA
Gate Drive Board Fault Output Supply Voltage
30 V
Gate Drive Board Pulse Width Modulation Pwm Signal Input Voltage
15 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
2500 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
- 40 to +150 ºC
General Storage Temperature Tstg
- 40 to +125 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
800 V
Insulated Gate Bipolar Transistor Igbt Inverter Collector Curren
100 A
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
TJ = 25ºC unless otherwise Specified
Technical Specs Brands
Applied Power Systems, Inc.
