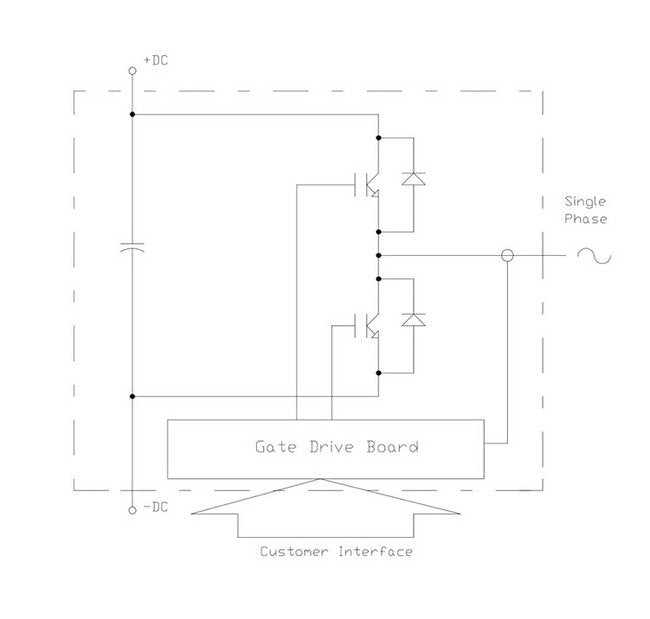

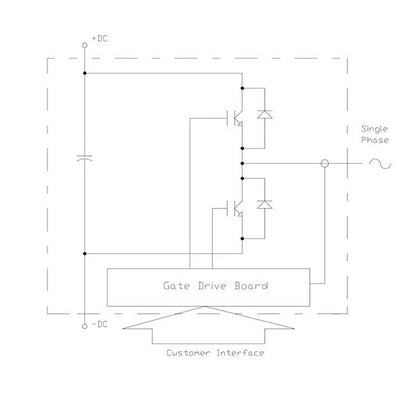

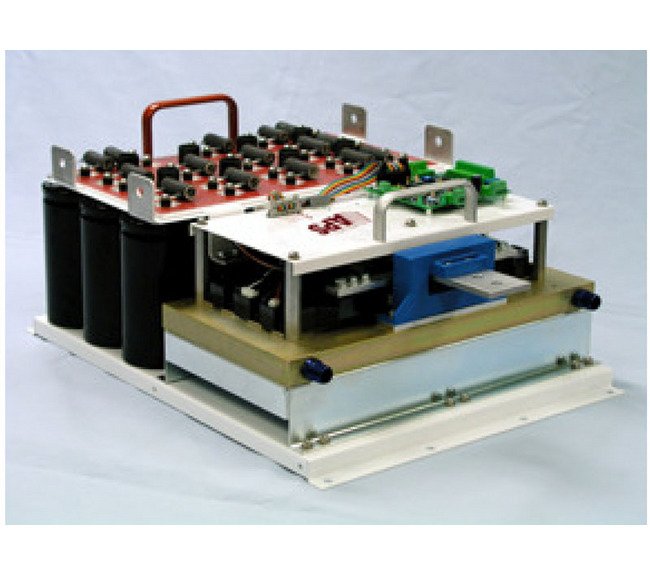

The PowerStack Liquid-Cooled IGBT Inverter is a versatile and integrated power assembly designed for a range of applications, including motor controls, UPS, and more. With a half-bridge configuration and liquid cooling on a compact heat sink, this inverter offers high performance at frequencies up to 20kHz. Featuring safety-enhanced gate drivers, low inductance bus structure, and isolated power supplies, the PowerStack ensures reliable operation and efficient power management. Ideal for institutional buyers seeking a robust solution meeting stringent standards.
Product Specifications
Additional Information Additional Information
The IAPL2800D120 PowerStack provides built in protection features including: OverVoltage, UnderVoltage lockout, OverCurrent, OverTemperature, short circuit and optional airflow or liquid flow indicators.Flexibility is a key feature of the IAPL2800D120 PowerStack. Customer provided PWM is optically coupled or a fiber optic link can be provided to the IGBT interface. Current feedback is provided by Hall Effect current transducers.The IAPL2800D120 PowerStack is rated to maximum input voltages up to 800 VDC, switching frequencies up to 20kHz, includes many safety features to protect the IGBTs and output circuitry and can be configured to meet your application.
Compact Size Depth
18.6 in
Compact Size Height
9.00 in
Compact Size Width
15.4 in
Features Features
High performance IGBT inverter bridgeCompact Size - 9.0" H x 15.4" W x 18.6" DDC Bus Voltages to 800 VDCSnubber-less operation to 750 VDCSwitching frequencies up to 20 kHzFault Protection with status indication:OverCurrentOverVoltageOverTemperatureShort circuitPS UnderVoltageIsolated analog feedbacksLow inductance laminated busIsolated gate driver and power suppliesLiquid cooling with temperature feedbackOutput current feedbackSuperior short circuit protection and shoot through prevention
Gate Drive Board Electrical Characteristics Maximum Output Overc
2600 A
Gate Drive Board Electrical Characteristics Maximum Overtemperat
65 ºC
Gate Drive Board Electrical Characteristics Maximum Overvoltage
910 V
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Output Overc
2400 A
Gate Drive Board Electrical Characteristics Minimum Overtemperat
61 ºC
Gate Drive Board Electrical Characteristics Minimum Overvoltage
890 V
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
2500 A
Gate Drive Board Electrical Characteristics Overtemperat
63 ºC
Gate Drive Board Electrical Characteristics Overvoltage
900 V
Gate Drive Board Electrical Characteristics Pulse Width
15 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
Gate Drive Board Fault Signal Output Current
50 mA
Gate Drive Board Fault Signal Output Supply Voltage
30 V
Gate Drive Board Note For Absolute Maximum Ratings
TJ = 25 ºC unless otherwise Specified
Gate Drive Board Pulse Width Modulation Pwm Signal Input Voltage
20 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
2500 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
- 40 to +150 ºC
General Operating Temperature Top
-25 to +85 ºC
General Storage Temperature Tstg
- 40 to +150 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
900 V
Insulated Gate Bipolar Transistor Igbt Inverter Collector Curren
2800 A
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
1 mA
Technical Specs Brands
Applied Power Systems, Inc.
