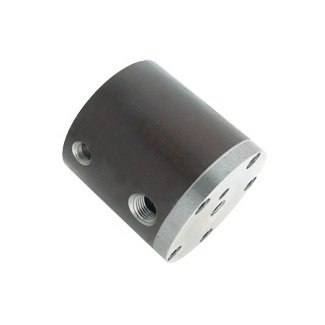

PowRLock Double Acting Hollow Pistons
PowRLock Double Acting Hollow Pistons
SKU:HYD-2b7a45
Versatile PowRLock Hollow Pistons for precise hydraulic clamping, offering up to 24,000 lbs of force. Enhance production speed and quality control.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
PowRLock Double Acting Hollow Pistons
$349.99
Quantity: 1
Claim Your Seller Account
PowRLock Double Acting Hollow Pistons
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PowRLock Double Acting Hollow Pistons offer unparalleled versatility and ease of installation. With a maximum force capacity of 24,000 pounds and precision clamping repetition, these pistons enhance production speed, quality control, and tooling efficiency. Designed to accommodate various bolt lengths, these patented hollow pistons can be utilized for both push and pull motions, making them ideal for a wide range of applications. With an oil pressure rating of 10,000 psi and compliance with industry standards, these pistons ensure reliable and efficient performance for hydraulic clamping needs.
Product Specifications
Specifications Country Of Origin
US
Specifications Effective Piston Area
1.98 in²
Specifications Force Per 1000 Psi Advance Stroke
1976 lb
Specifications Force Per 1000 Psi Advance Stroke Return Stroke
Air
Specifications Hollow Piston Inside Diameter
0.76 in
Specifications Maximum Ram Force Advance Stroke
19760 lb
Specifications Maximum Ram Force Advance Stroke Return Stroke
Air
Specifications Mounting Thread
1/4"-20NC
Specifications Oil Port Diameter Nptf Advance Stroke
0.25 in
Specifications Oil Port Diameter Nptf Advance Stroke Return Stro
0.13 in
Specifications Oil Pressure Rating Max
10000 psi
Specifications Oil Volume Full Stroke Advance Stroke
1.48 in³
Specifications Outside Cylinder Diameter
2.63 in
Specifications Overall Length
2.75 in
Specifications Piston
Hollow
Specifications Piston Rod Diameter
1.38 in
Specifications Piston Stroke Max
0.75 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
3.50 lb
