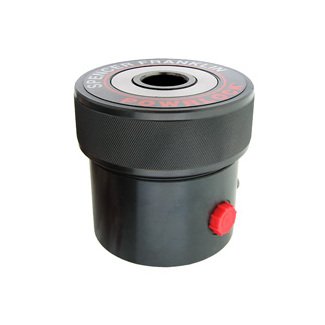

The PowRLock Hollow Pistons - Single Acting Hydraulic Clamps offer unparalleled versatility and ease of installation. Designed to accommodate various lengths of bolts, studs, or rods, these hollow pistons can be mounted for both push and pull motions. With an exclusive patented design capable of exerting forces up to 24,000 pounds, these pistons have a doubled stroke potential when the internal spring is removed. Featuring a sturdy construction with an Outside Cylinder Diameter of 2.63 inches and an Effective Piston Area of 1.98 in², these pistons are ideal for industrial applications where precision and power are essential. Remember not to exceed 90% of the maximum stroke limit for optimal performance.
Product Specifications
Specifications Country Of Origin
US
Specifications Effective Piston Area
1.98 in²
Specifications Force Per 1000 Psi
1976 lb
Specifications Hollow Piston Inside Diameter
0.76 in
Specifications Mounting Thread
1/4"-20NC
Specifications Oil Port Diameter Nptf
0.25 in
Specifications Oil Pressure Rating Max
10000 psi
Specifications Oil Volume Full Stroke
0.49 in³
Specifications Outside Cylinder Diameter
2.63 in
Specifications Overall Length
2.75 in
Specifications Piston
Hollow
Specifications Piston Rod Diameter
1.38 in
Specifications Piston Stroke Max
0.25 in
Specifications Ram Force Max
19760 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
3.50 lb
