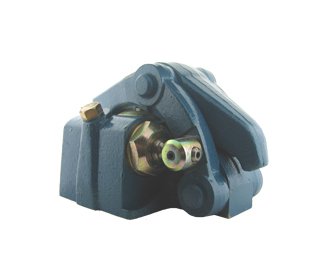

PowRLock Hydraulic Bridge Clamp - PowRslide
PowRLock Hydraulic Bridge Clamp - PowRslide
SKU:HYD-975821
Enhance machining efficiency with the PowRLock Hydraulic Bridge Clamp - PowRslide. Speed up operations and increase productivity with precision clamping.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
PowRLock Hydraulic Bridge Clamp - PowRslide
$599.99
Quantity: 1
Claim Your Seller Account
PowRLock Hydraulic Bridge Clamp - PowRslide
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PowRLock Hydraulic Bridge Clamp - PowRslide is a precision-engineered solution for fast and efficient clamping in machining operations. Activated by a simple touch of the control valve, this clamp features a horizontal piston that pushes the rocker arm forward, followed by a vertical piston that drives the rocker arm down to securely hold the workpiece in place. This automated process not only speeds up loading and unloading but also allows for synchronization with machine cycles for increased productivity. With a thrust of 2700 lb at 1000 psi oil pressure and a maximum vertical stroke of 0.88 inches, the PowRLock Hydraulic Bridge Clamp - PowRslide offers robust performance and easy adaptability for various machining setups.
Product Specifications
Specifications Country Of Origin
-
Specifications Effective Piston Area
1.48 in²
Specifications Horizontal Stroke
1.18 in
Specifications Max Vertical Stroke Piston
0.88 in
Specifications Oil Volume For Maximum Stroke
1.41 in³
Specifications Thrust Of Locking Arm At 1000 Psi Oil Pressure
2700 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
13.00 lb
