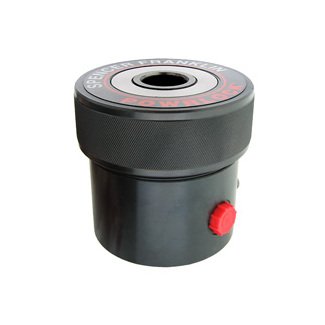

PowRLock Single Acting Hollow Pistons
PowRLock Single Acting Hollow Pistons
SKU:HYD-fa12c6
Enhance your hydraulic clamping with PowRLock Single Acting Hollow Pistons. Easy to mount, versatile in use, and deliver forces up to 24,000 pounds.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
PowRLock Single Acting Hollow Pistons
$149.99
Quantity: 1
Claim Your Seller Account
PowRLock Single Acting Hollow Pistons
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your hydraulic clamping system with PowRLock Single Acting Hollow Pistons. These versatile hollow piston heads can be easily mounted over any bolt or rod, offering both push and pull functionality with forces up to 24,000 pounds. The exclusive patented design allows for doubled stroke and oil volume, enhancing performance and flexibility. With an oil pressure rating of 5000 psi and max ram force of 9900 lb, these pistons deliver reliability and strength for various applications.
Product Specifications
Specifications Country Of Origin
-
Specifications Effective Piston Area
1.98 in²
Specifications Force Per 1000 Psi
1980 lb
Specifications Hollow Piston Inside Diameter
0.69 in
Specifications Oil Port Diameter Nptf
0.25 in
Specifications Oil Pressure Rating Max
5000 psi
Specifications Oil Volume Full Stroke
2.49 in³
Specifications Outside Cylinder Diameter
2.63 in
Specifications Overall Length
5.03 in
Specifications Piston
Hollow
Specifications Piston Rod Diameter
1.50 in
Specifications Piston Stroke Max
1.25 in
Specifications Ram Force Max
9900 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
5.80 lb
