PowRLock Single Acting Hollow Pistons

PowRLock Single Acting Hollow Pistons

SKU:HYD-bc0bf4

Versatile PowRLock Single Acting Hollow Pistons for hydraulic systems. Maximum force up to 24,000 lbs, 10,000 psi rating, and Prop 65 compliant.

Regular price $129.99
Regular price Sale price $129.99
Sale

Initiate Order

PowRLock Single Acting Hollow Pistons

PowRLock Single Acting Hollow Pistons

$129.99

Quantity: 1

Claim Your Seller Account

PowRLock Single Acting Hollow Pistons

PowRLock Single Acting Hollow Pistons

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

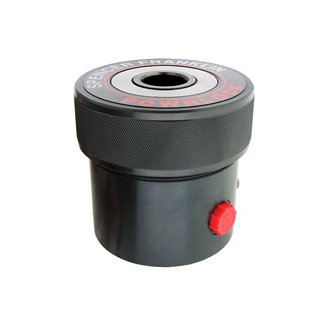

Enhance your hydraulic clamping systems with PowRLock Single Acting Hollow Pistons. These versatile and easy-to-mount pistons come with a patented hollow design that allows for installation over various fasteners. With a maximum force capacity of 24,000 pounds and a doubled stroke capability by removing the internal spring, these pistons offer exceptional performance. Designed with an oil pressure rating of 10,000 psi and compliance with various industry standards, including Prop 65, these pistons ensure both reliability and safety in operation.

Product Specifications

Specifications Country Of Origin
US
Specifications Effective Piston Area
1.98 in²
Specifications Force Per 1000 Psi
1976 lb
Specifications Hollow Piston Inside Diameter
0.69 in
Specifications Mounting Thread
5/16"-18NC
Specifications Oil Port Diameter Nptf
0.25 in
Specifications Oil Pressure Rating Max
10000 psi
Specifications Oil Volume Full Stroke
0.86 in³
Specifications Outside Cylinder Diameter
3.00 in
Specifications Overall Length
2.29 in
Specifications Piston
Hollow
Specifications Piston Rod Diameter
1.50 in
Specifications Piston Stroke Max
0.31 in
Specifications Ram Force Max
19760 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
4.00 lb
